Front Side Door Sill Trim Plate Replacement (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

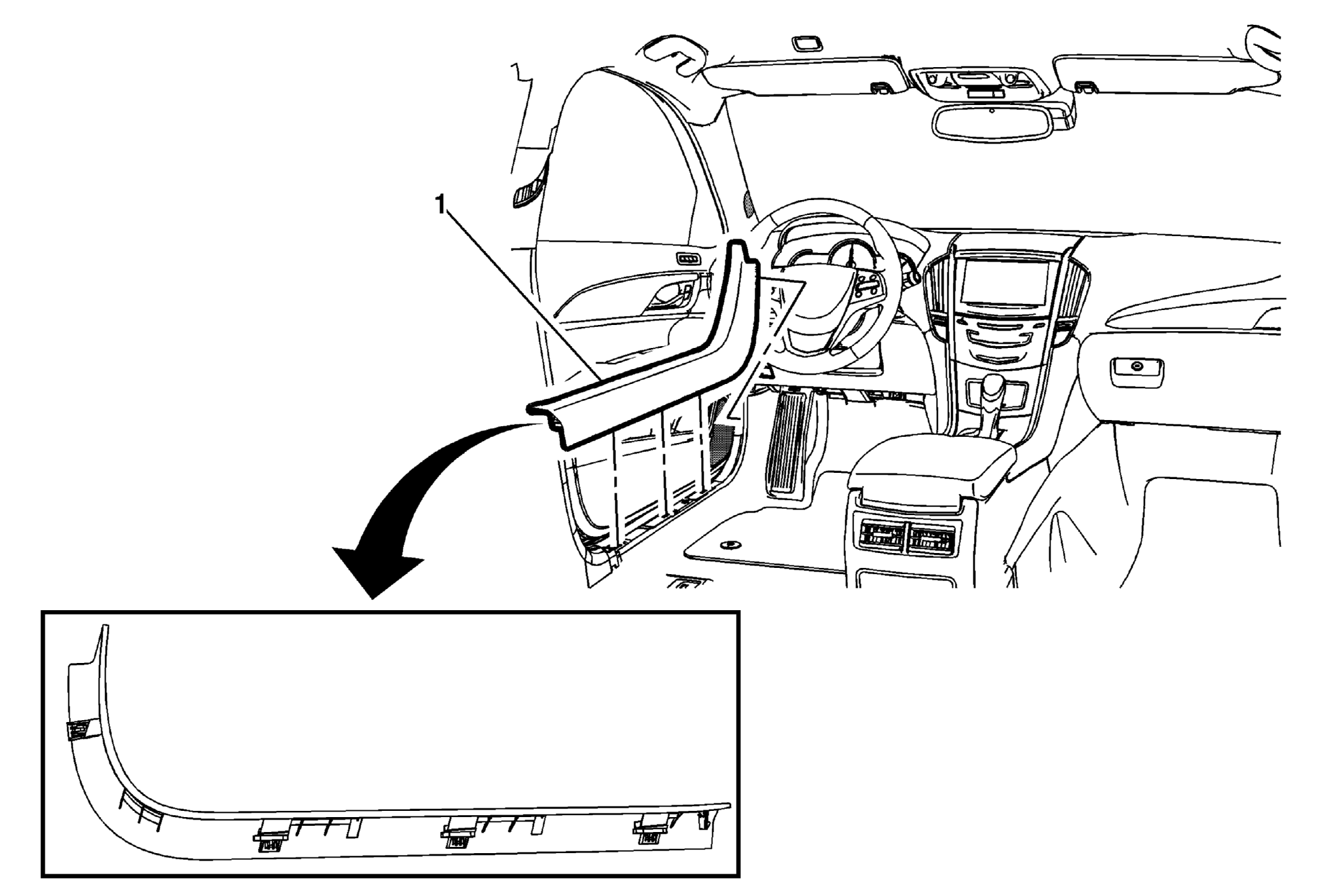

| Callout |
Component Name |
| 1 |
Front Side Door Sill Trim Plate Assembly Procedure
- Pull toward the rear of the vehicle to disengage integral clips.
- Reposition the front floor panel carpet as needed.
|
