Front Side Door Sill Trim Plate Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

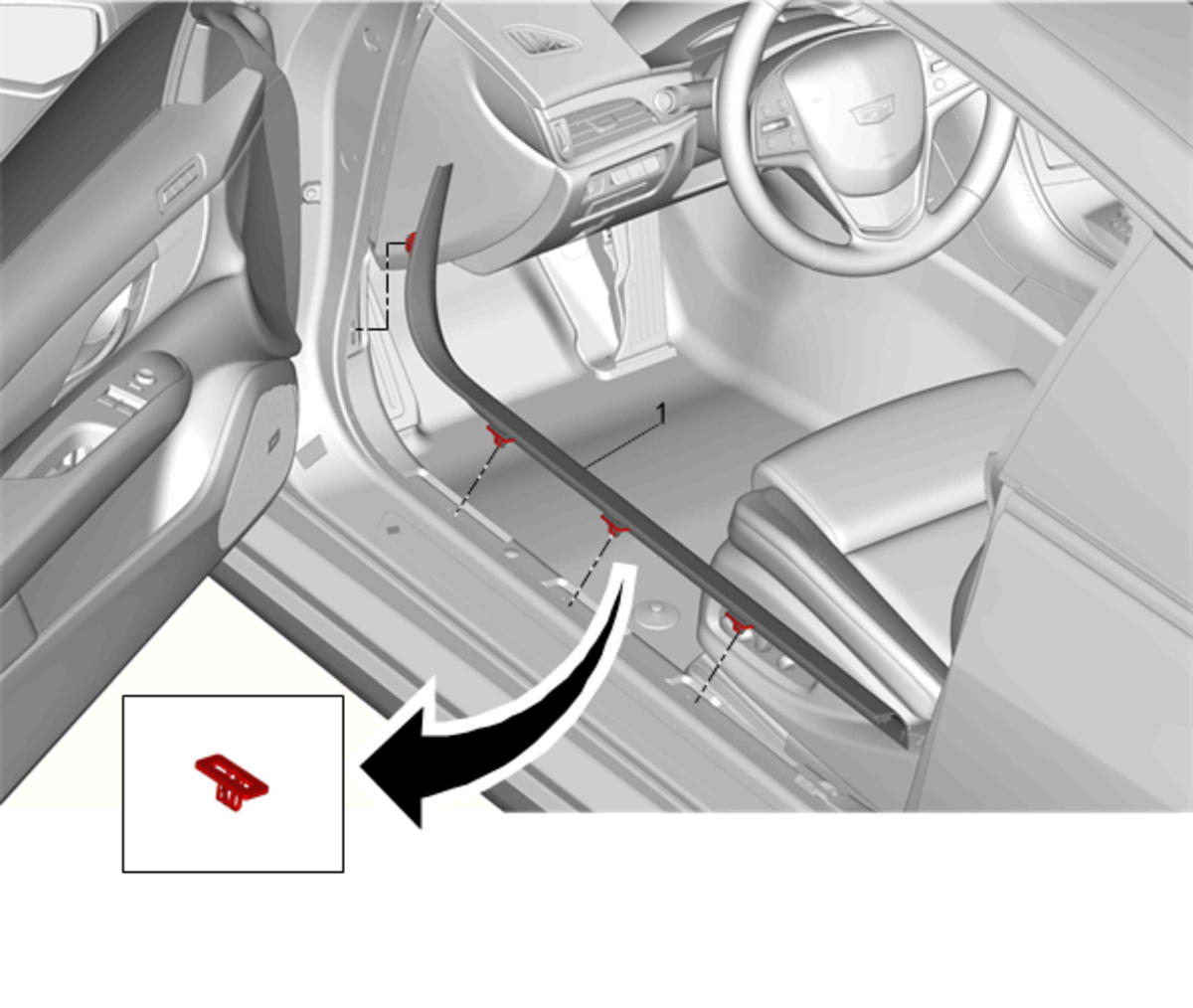

Fig 1: Front Side Door Sill Trim Plate Assembly (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Sill Trim Plate Assembly Procedure Starting at the front of sill plate, lift upward to disengage the integral clips then gently force the sill plate forward (4-6 mm) to relax the integral tab at the rear of the sill plate and pull up to disengage the plate from the rear trim. Reposition the front floor panel carpet as needed.

Callout

Component Name

Front Side Door Sill Trim Plate Assembly

Procedure

Starting at the front of sill plate, lift upward to disengage the integral clips then gently force the sill plate forward (4-6 mm) to relax the integral tab at the rear of the sill plate and pull up to disengage the plate from the rear trim.
Reposition the front floor panel carpet as needed.
