Chassis Control Module Replacement (LF4 Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

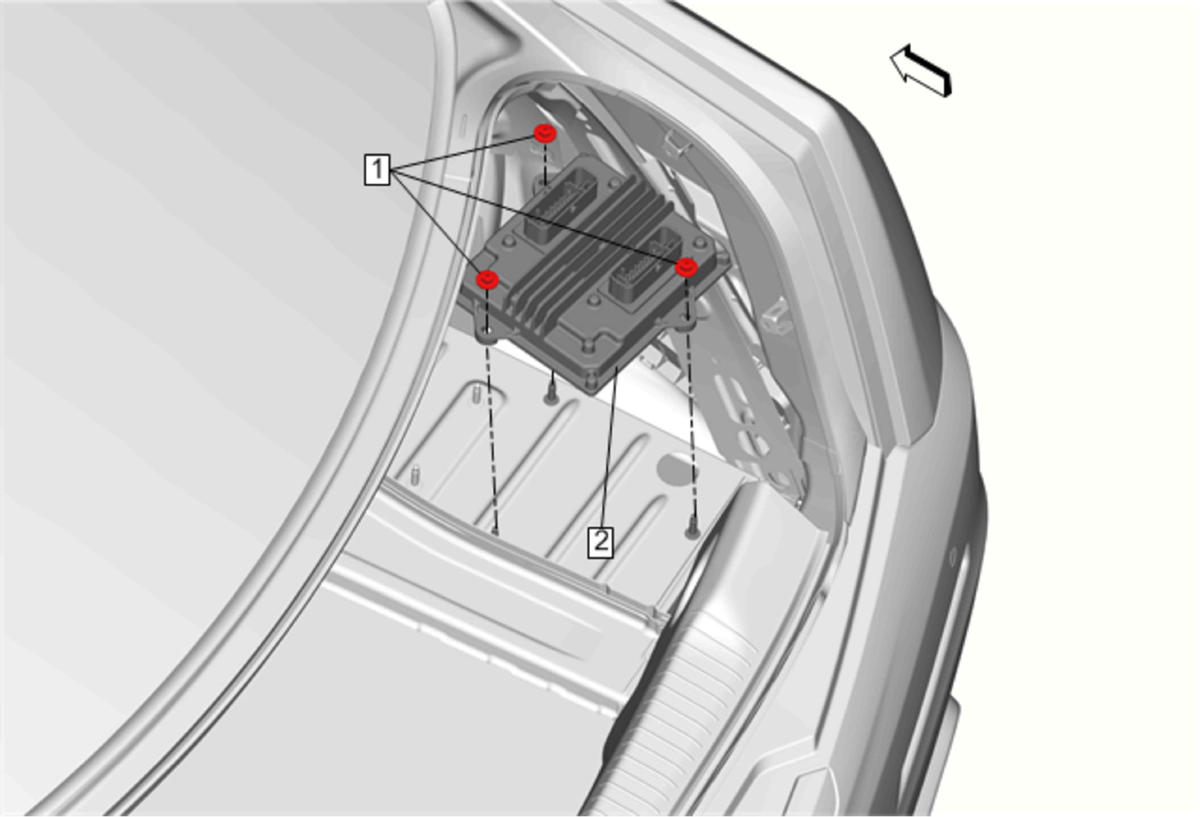

Fig 1: Chassis Control Module (LF4 Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Compartment Side Trim - Right Side. Refer to Rear Compartment Side Trim Replacement - Right Side (Coupe)
1	Chassis Control Module Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
2	Chassis Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the module. Refer to Control Module References

Callout

Component Name

Preliminary Procedure
Remove Rear Compartment Side Trim - Right Side. Refer to Rear Compartment Side Trim Replacement - Right Side (Coupe)

Chassis Control Module Fastener (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
7 N.m (62 lb in)

Chassis Control Module

Procedure

Disconnect the electrical connector.
If replacing, reprogram the module. Refer to Control Module References
