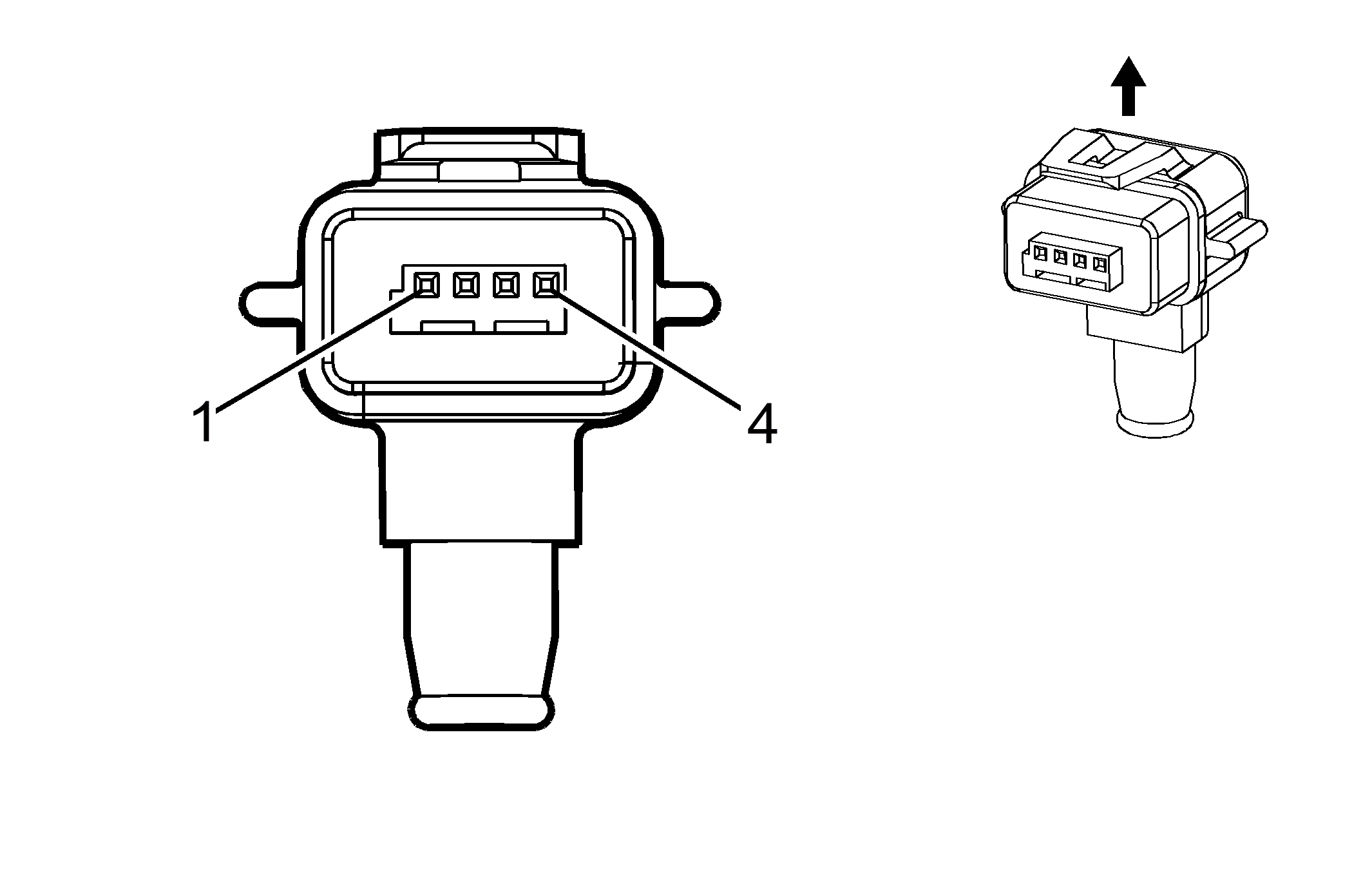

T7L Headlamp Ballast - Left X2 (T4F)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Left Headlamp High Voltage
- OEM Connector: Not Available
- Service Connector: Service by Component - See Part Catalog
- Description: 4-Way F (HID Type GN with BK case)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
HID High Voltage |
I |
- |
| 2 |
- |
- |
- |
HID High Voltage |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
- |
- |
- |
HID High Voltage |
I |
- |
