M28R High Beam Solenoid Actuator - Right (-T4F)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
|
|

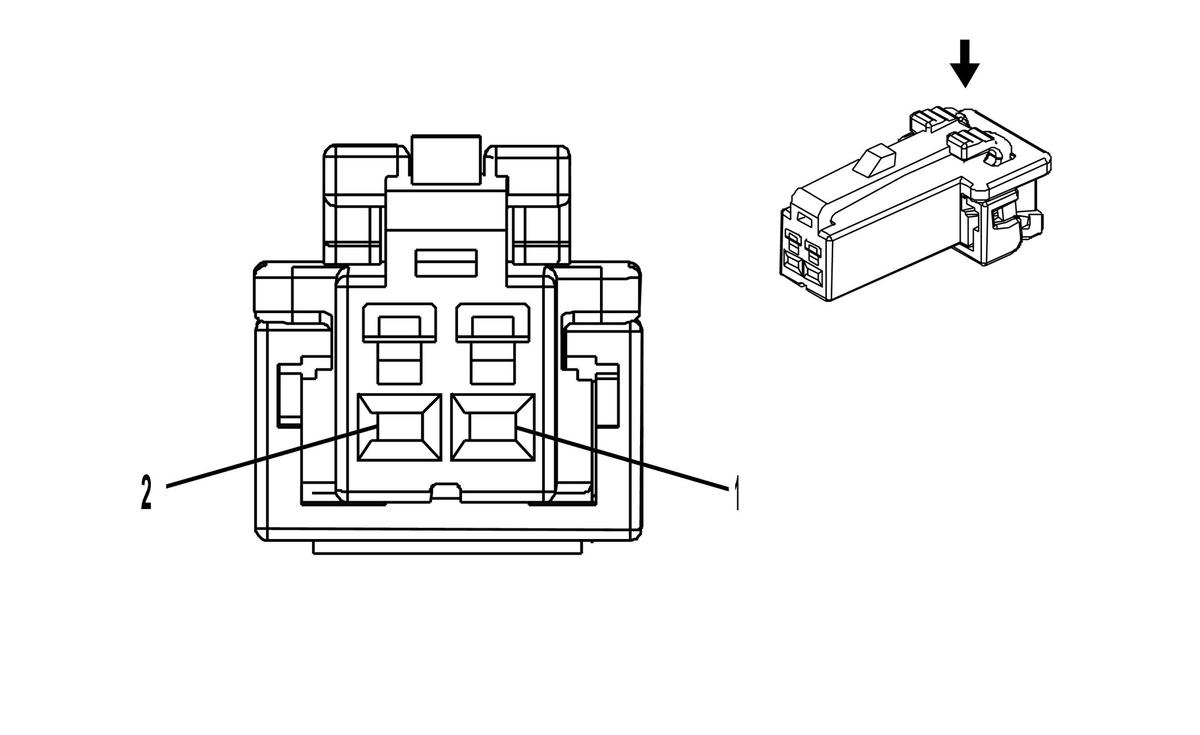

Connector Part Information
- Harness Type: Right Headlamp
- OEM Connector: MG652987
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 040 III Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
RD |
311 |
Right Headlamp High Beam Control |
I |
- |
| 2 |
0.5 |
BK/WH |
650 |
Ground |
I |
- |
