E4LF Turn Signal Lamp - Left Front (T4F with TUJ)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
|
|

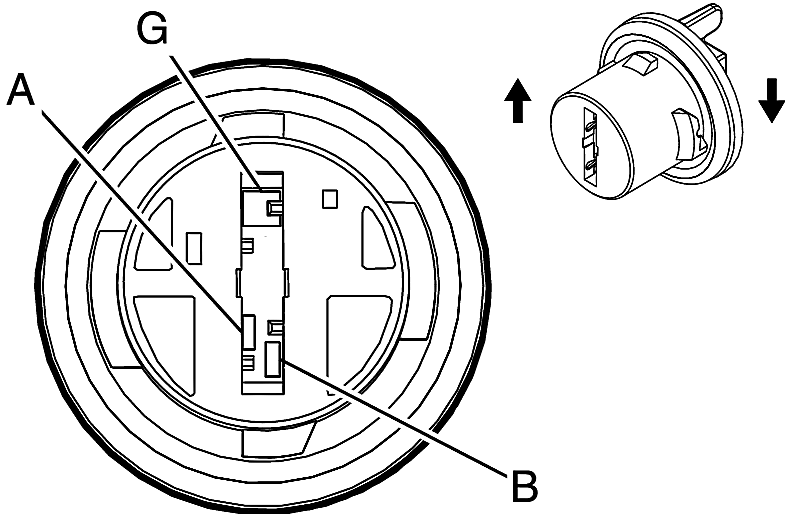

Connector Part Information
- Harness Type: Left Headlamp
- OEM Connector: EEM0413
- Service Connector: Service by Component - See Part Catalog
- Description: 3-Way F Lamp socket Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.52 |
D-GN |
1314 |
Left Front Turn Signal Lamp Supply Voltage |
I |
- |
| B |
- |
- |
- |
Not Occupied |
- |
- |
| G |
0.52 |
GY |
550 |
Ground |
I |
- |
