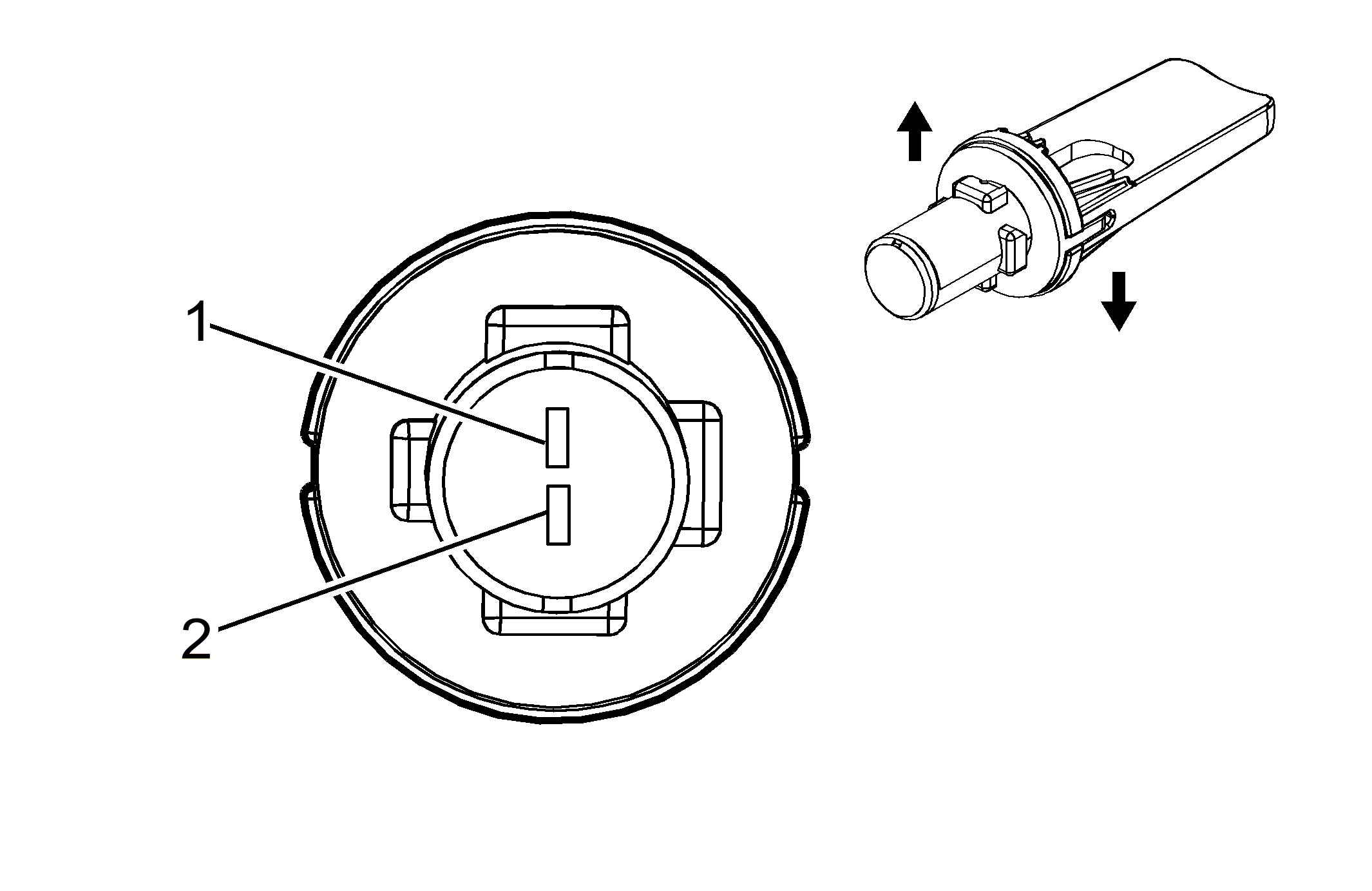

E4J Park Lamp - Left Front (TR6)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Left Headlamp
- OEM Connector: EEM1109
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F Lamp Socket
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| B |
- |
OG |
709 |
Left Park Lamp Control |
I |
- |
| G |
- |
GY |
550 |
Ground |
I |
- |
