B107 Accelerator Pedal Position Sensor (M3L/MG9)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
|
|

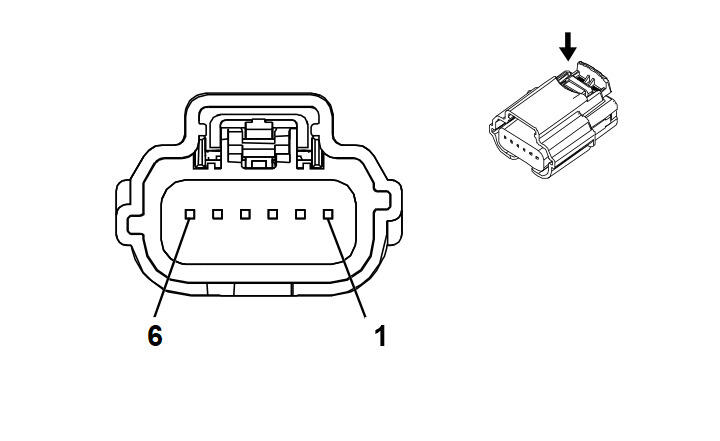

Connector Part Information
- Harness Type: Body
- OEM Connector: 31404-6210
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 64 Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK/RD |
1274 |
Accelerator Pedal Position 5V Reference 2 |
I |
M3L/MG9 |
| 2 |
0.35 |
BK/GN |
1162 |
Accelerator Pedal Position Signal 2 |
I |
M3L/MG9 |
| 3 |
0.35 |
BK/VT |
1272 |
Accelerator Pedal Position Low Reference 2 |
I |
M3L/MG9 |
| 4 |
0.35 |
BK/BU |
1271 |
Accelerator Pedal Position Low Reference 1 |
I |
M3L/MG9 |
| 5 |
0.35 |
BK/YE |
1161 |
Accelerator Pedal Position Signal 1 |
I |
M3L/MG9 |
| 6 |
0.35 |
BK/WH |
1164 |
Accelerator Pedal Position 5V Reference 1 |
I |
M3L/MG9 |
