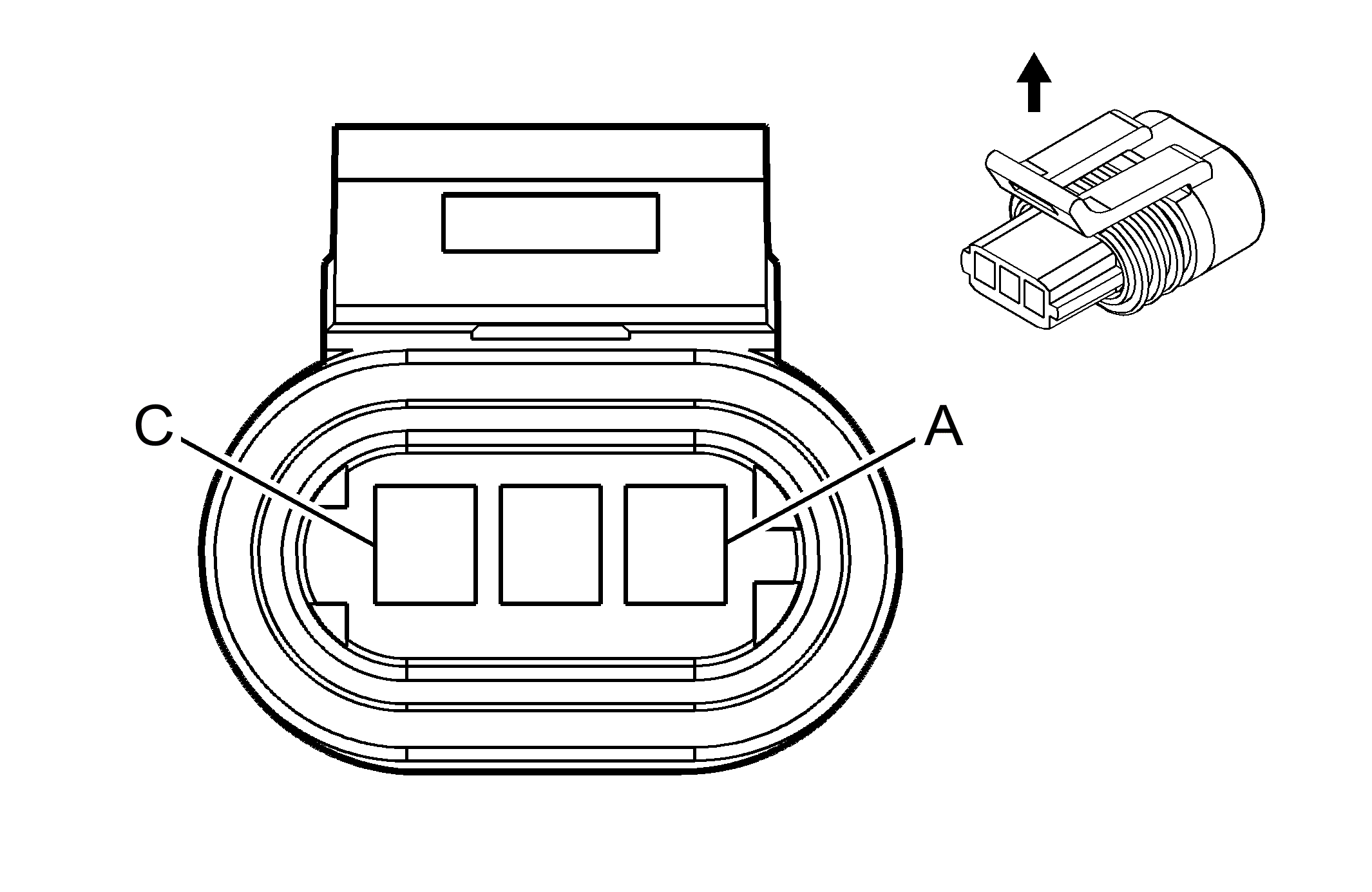

B14A Transmission Output Shaft Speed Sensor (M3L)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 12162279
- Service Connector: 12085538
- Description: 3-Way F 150.2 Metri-Pack Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.75 |
GY/BK |
3096 |
Output Speed (Digital) Sensor 5V Reference |
I |
LTG+M3L |
| B |
0.75 |
GN |
3098 |
Output Speed (Digital) Signal |
I |
LTG+M3L |
| C |
0.75 |
WH/BK |
3097 |
Output Speed (Digital) Sensor Low Reference |
I |
LTG+M3L |
