Sunroof Window Motor Replacement

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

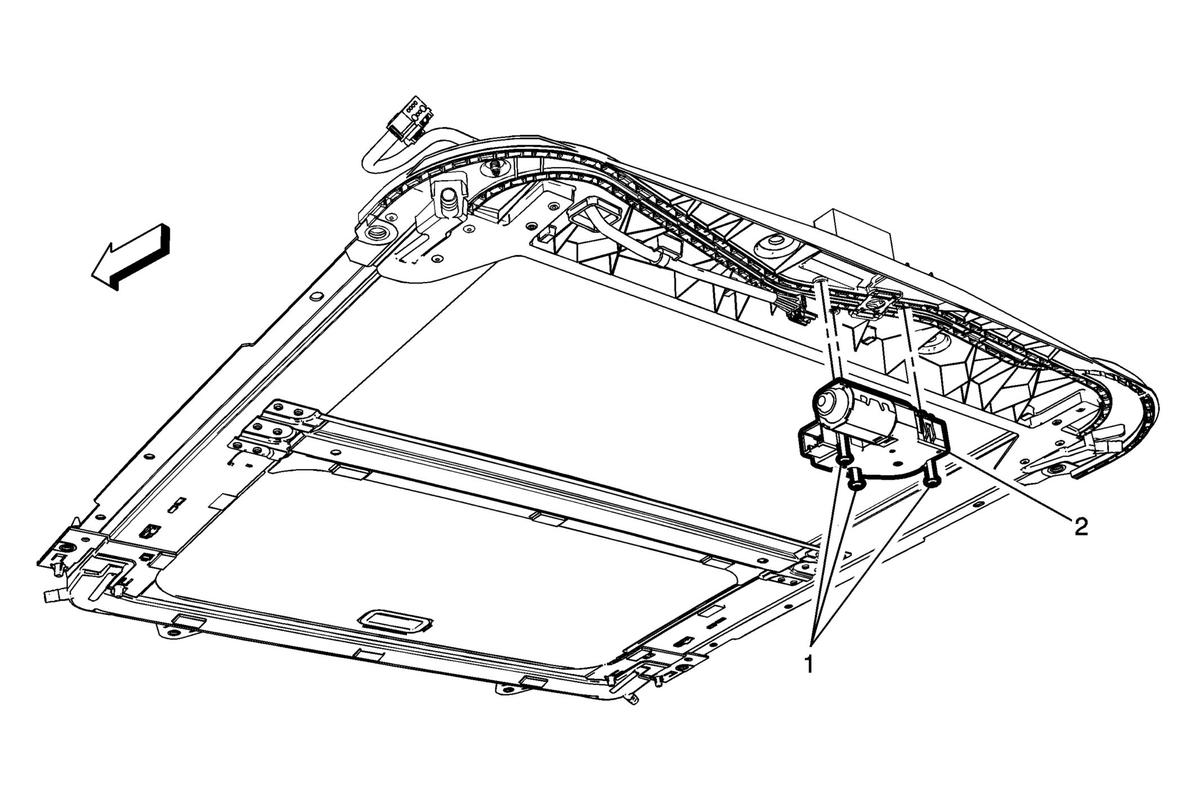

Fig 1: Sunroof Window Motor
GM2823546Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
It is only necessary to lower the headliner. Only perform the steps in the headliner replacement procedure that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (Sedan With Sunroof)Headlining Trim Panel Replacement (Sedan Without Sunroof)Headlining Trim Panel Replacement (Coupe) .
1 Sunroof Motor/Actuator Bolts (Qty: 3)
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Disconnect the electrical connector.
  2. With a turning motion, pull downward on the motor/actuator. Disengage the motor from the drive cables.
  3. Install the motor/actuator to the module with a turning motion. Push upward. This will engage the motor/actuator into the drive cables.

Tighten
4 N.m (35 lb in).
2 Sunroof Motor/Actuator

Procedure

  1. Verify the sunroof operation.
  2. After installing the sunroof motor/actuator refer to Sunroof Window Motor Initialization .
