Rear Center Seat Belt Retractor Replacement

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

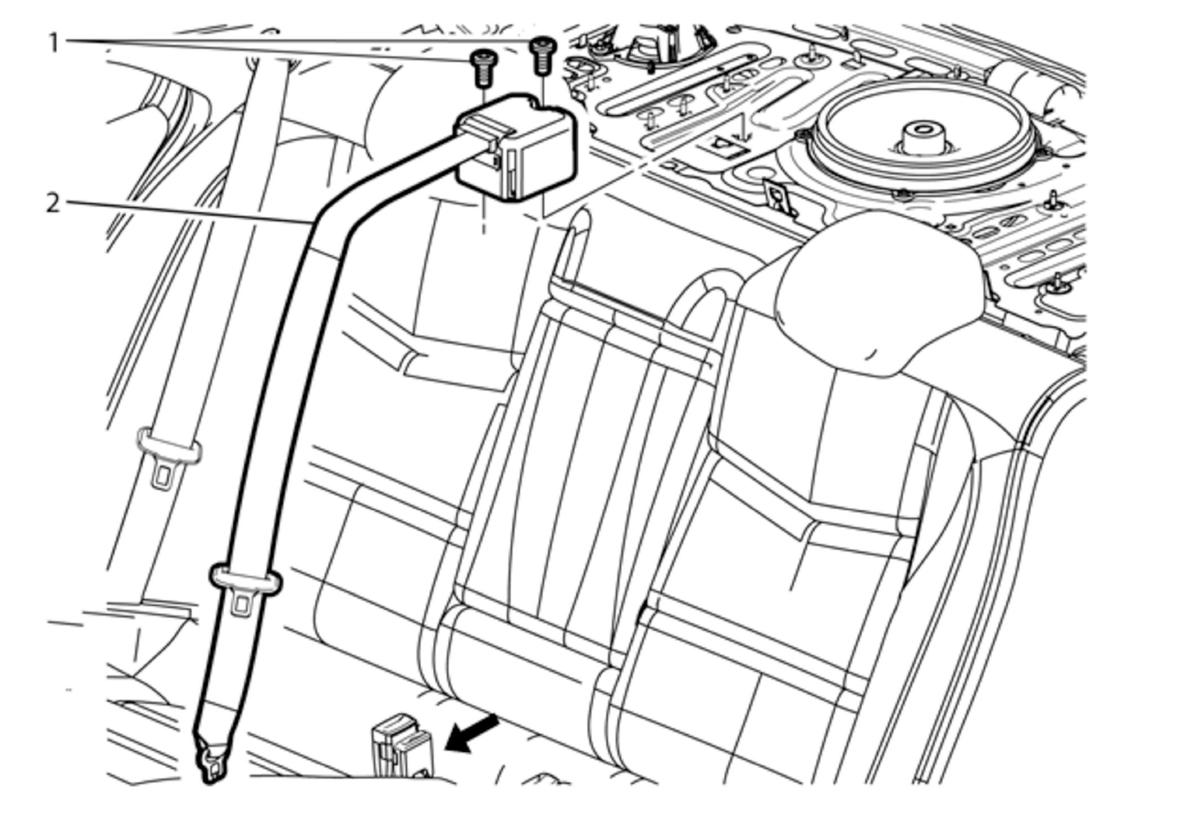

Fig 1: Rear Center Seat Belt Retractor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (Sedan)Rear Window Panel Trim Replacement (Coupe)
1	Rear Center Seat Belt Retractor Fastener CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Center Seat Belt Retractor Procedure Remove the felt pad from the mini buckle. Using a suitable tool, press the button to release the belt from the mini buckle. NOTE: When installing, ensure the felt pad is replaced on the buckle.

Callout

Component Name

Preliminary Procedure
Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (Sedan)Rear Window Panel Trim Replacement (Coupe)

Rear Center Seat Belt Retractor Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
45 N.m (33 lb ft)

Rear Center Seat Belt Retractor

Procedure

Remove the felt pad from the mini buckle.
Using a suitable tool, press the button to release the belt from the mini buckle.
NOTE:
When installing, ensure the felt pad is replaced on the buckle.
