T19 Power Supply Transformer
WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
|
|

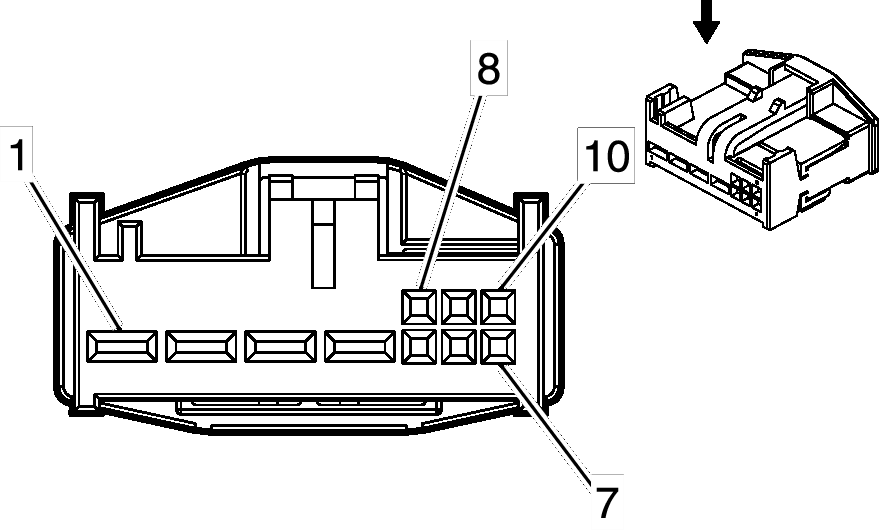

Connector Part Information
- Harness Type: Body
- OEM Connector: 13312158
- Service Connector: 13384309
- Description: 10-Way F 0.64 MQS, 2.8 MPQ Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575584 |
J-35616-64B (LT BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13582281 |
J-35616-16 (LT GN) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
4 |
BK |
2550 |
Ground |
II |
- |
| 2 |
4 |
RD/BU |
1242 |
Battery Positive Voltage |
II |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
4 |
RD/BU |
1240 |
Battery Positive Voltage |
II |
- |
| 5 |
0.35 |
VT/BK |
1239 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 6 |
0.35 |
YE/BK |
625 |
Starter Enable Relay Control |
I |
- |
| 7 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
