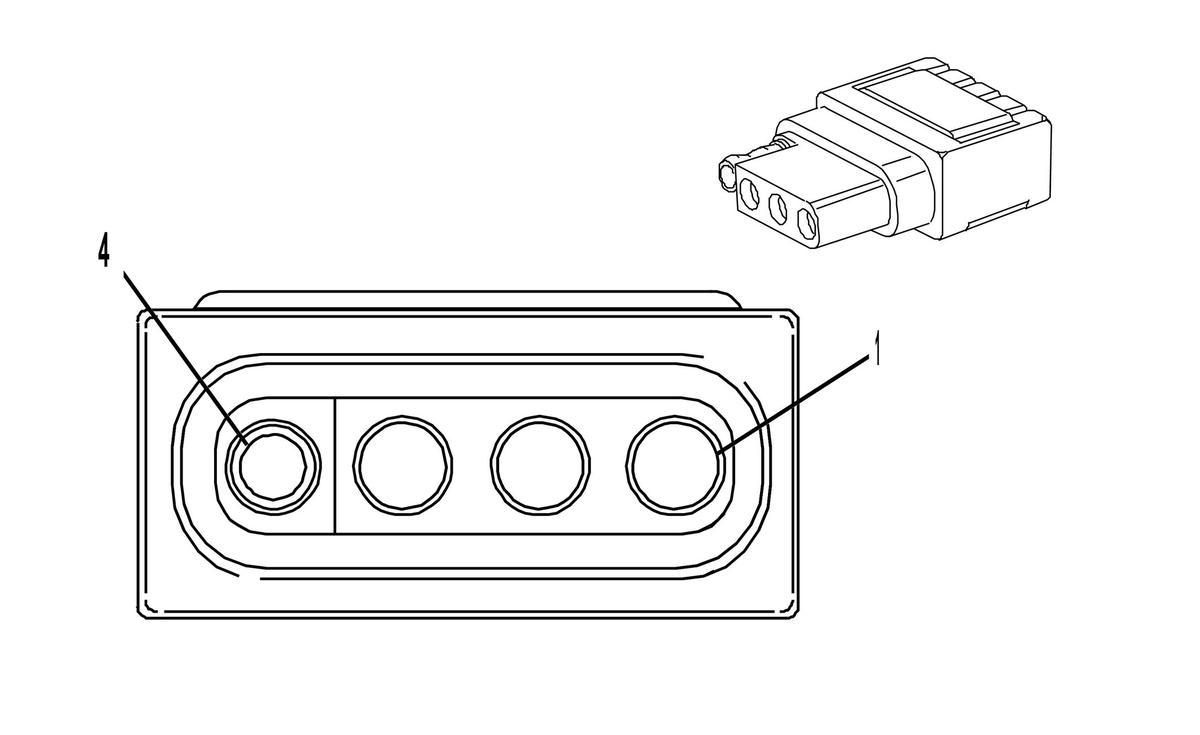

X88 Trailer Connector (-V92)
|
|
Connector Part Information
- Harness Type: Rear Bumper
- OEM Connector: 20030
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
GY/BN |
2109 |
Trailer Park Lamp Control |
I |
-VR2-V92 |
| 2 |
0.75 |
YE/GY |
1618 |
Left Rear Trailer Stop/Turn Lamp Control |
I |
-VR2-V92 |
| 3 |
0.75 |
GN/VT |
1619 |
Right Rear Trailer Stop/Turn Lamp Control |
I |
-VR2-V92 |
| 4 |
1 |
BK |
22 |
Trailer Ground |
I |
-VR2-V92 |
