Hood Rear Weatherstrip Replacement (Traverse)

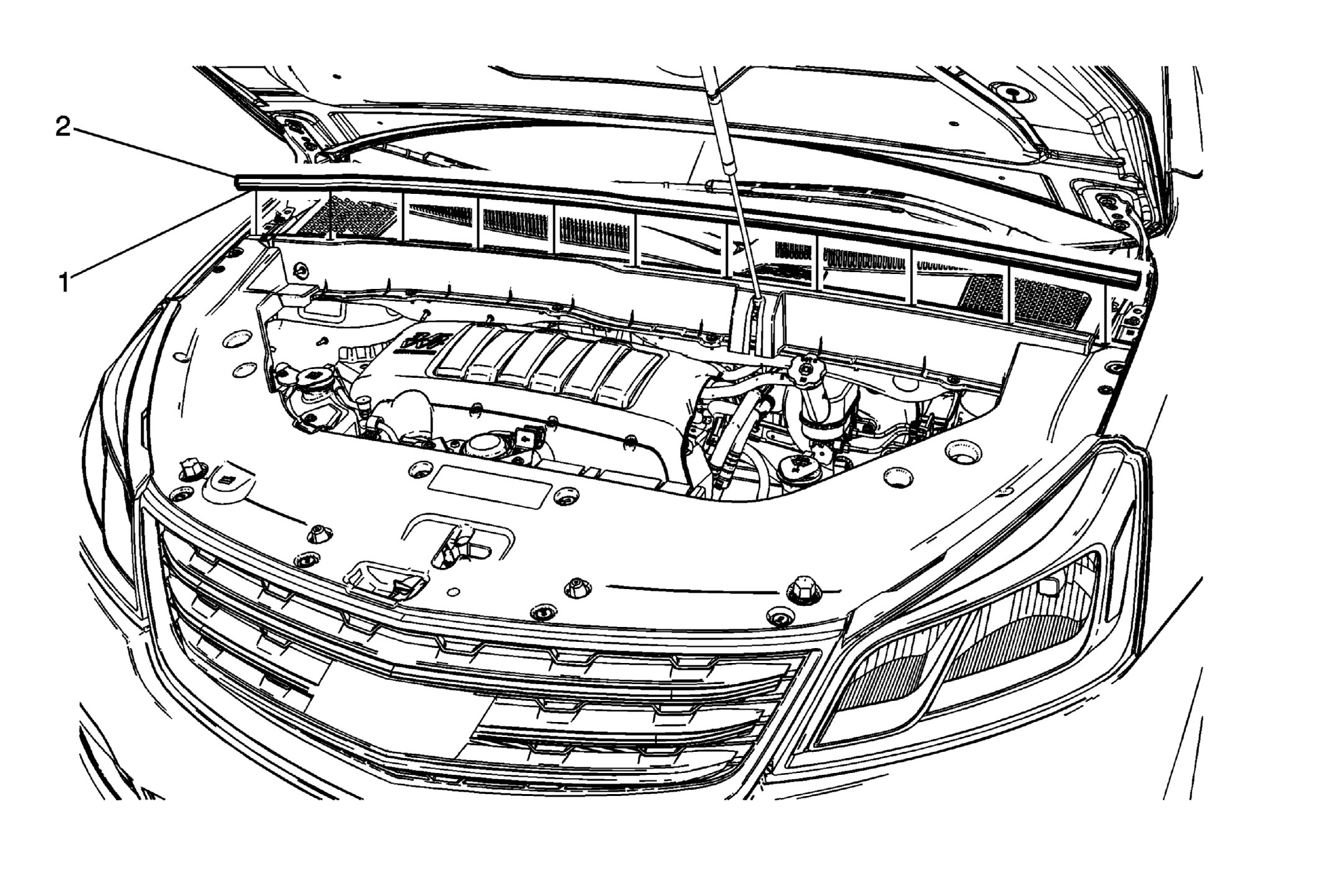

Fig 1: Hood Rear Weatherstrip (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Hood Rear Weatherstrip Push-In Retainer (Qty: 2) Procedure  Using a suitable tool, carefully pull the push-in retainers to release the hood rear weatherstrip ends.
2	Hood Rear Weatherstrip Procedure  The hood rear weatherstrip is held in place with 9 plastic retainers that are part of the air inlet grille. Carefully pull the weatherstrip to the right/left to release from the retainers on the air inlet grille.
