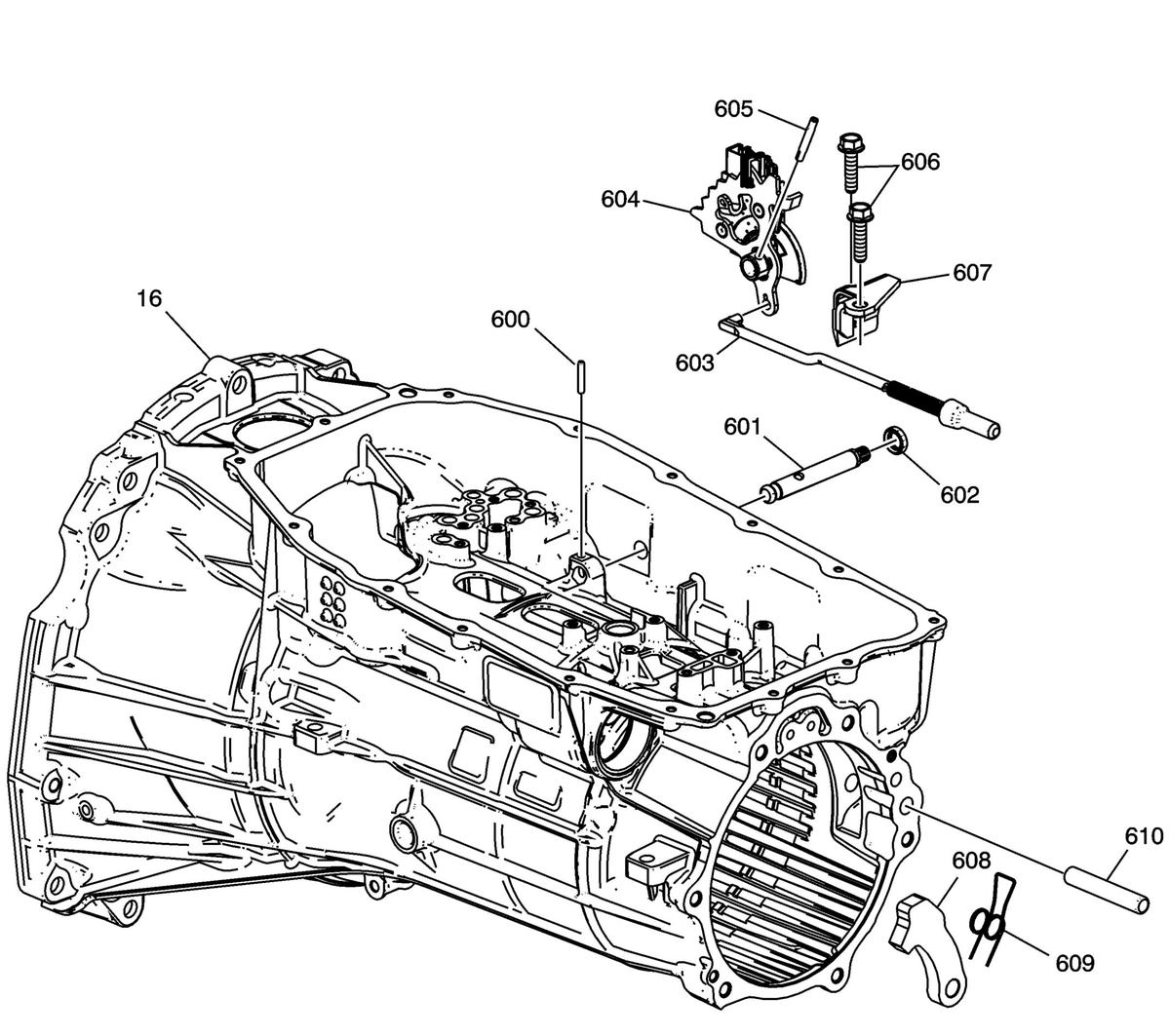

Park System Components
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 16 | A/Trans Case Assembly |
| 600 | Manual Shift Shaft Pin |
| 601 | Manual Shift Shaft |
| 602 | Manual Shift Shaft Seal |
| 603 | Park Pawl Actuator Assembly |
| 604 | Manual Shift Shaft Position Switch Assembly |
| 605 | Manual Shift Shaft Detent Lever Hub Pin |
| 606 | Park Pawl Actuator Bracket Bolt |
| 607 | Park Pawl Actuator Bracket |
| 608 | Park Pawl |
| 609 | Park Pawl Spring |
| 610 | Park Pawl Shaft |
