Input Sun Gear Assembly

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

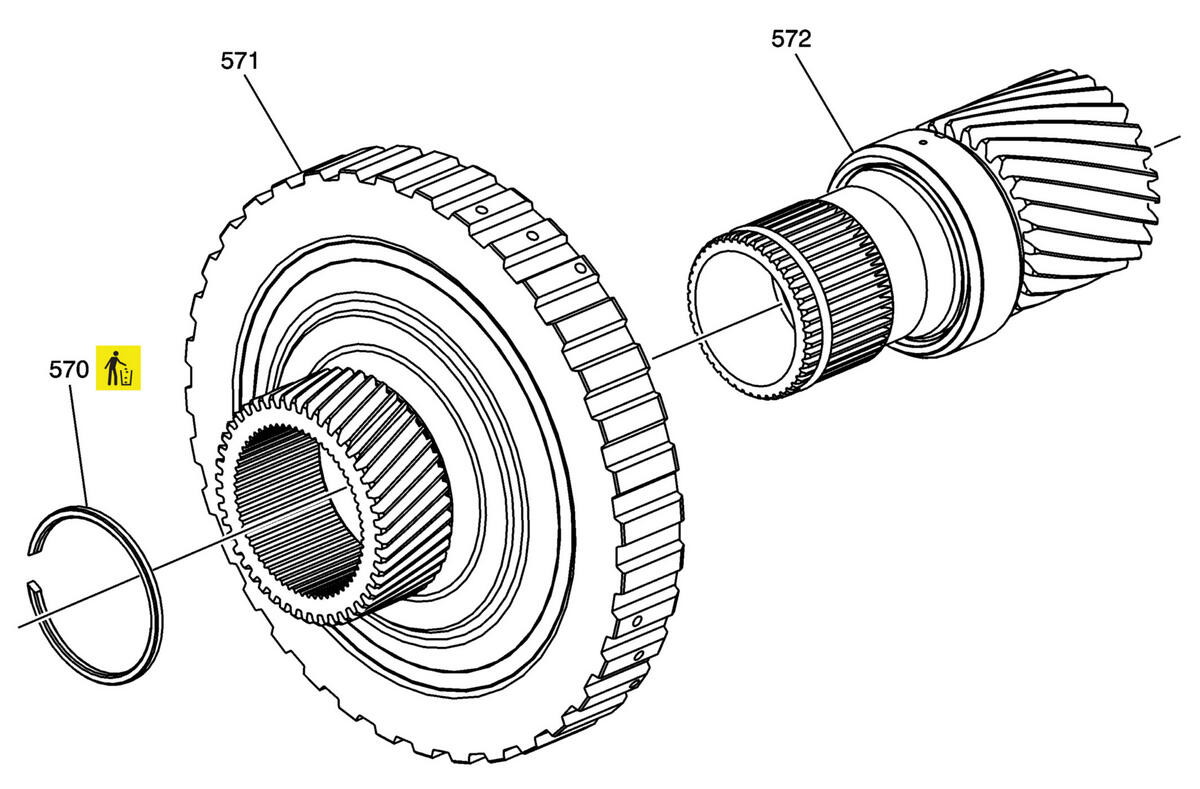

Fig 1: Input Sun Gear Assembly
GM3686820Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
570 Input Sun Gear Retaining Ring
571 Input Sun Gear Assembly
572 Reaction Sun Gear Assembly
