Input Internal Gear Assembly

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

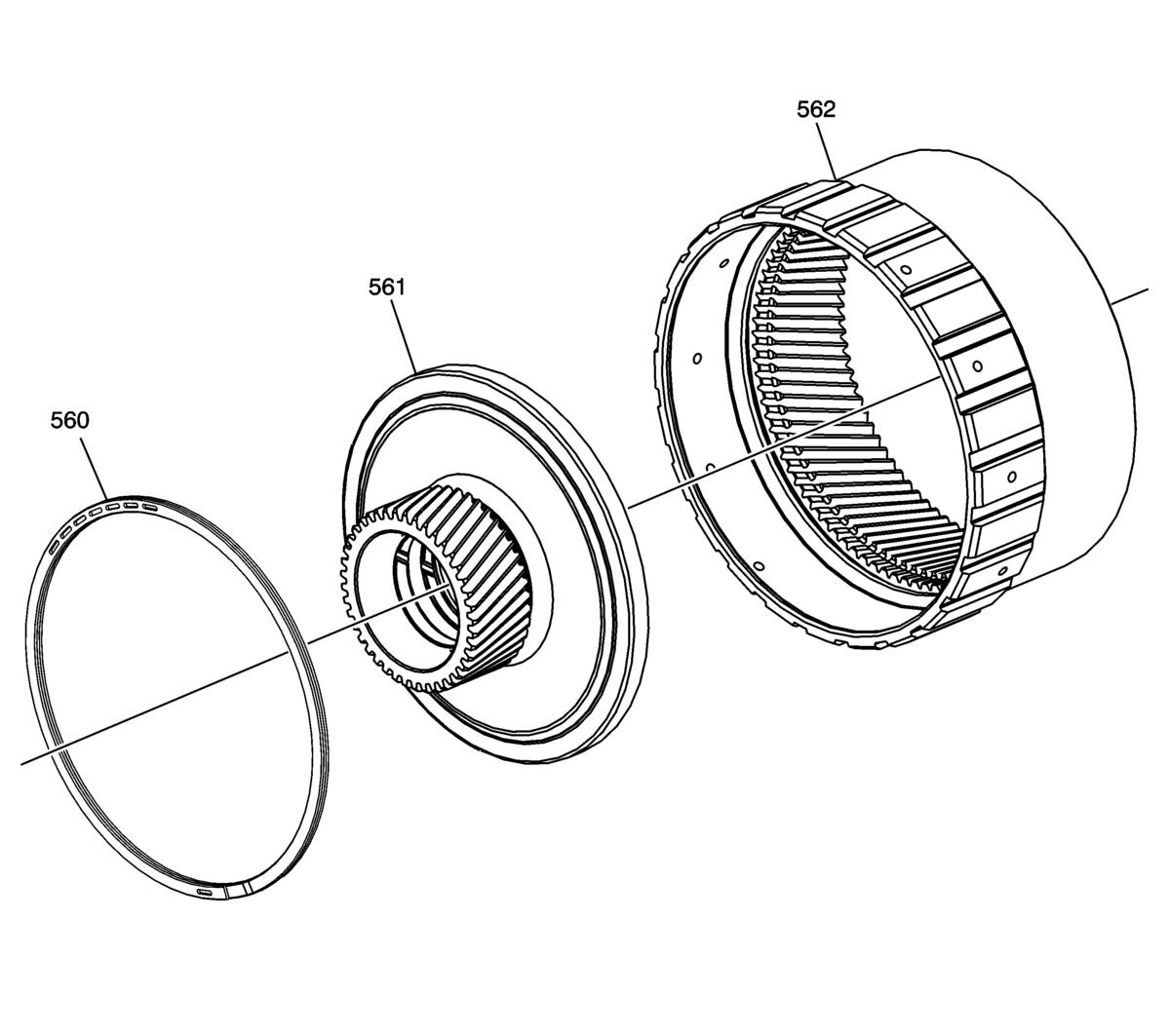

Fig 1: Input Internal Gear Assembly
GM3686817Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
560 Input Internal Gear Retaining Ring
561 Direct/Overdrive Sun Gear
562 Input Internal Gear
