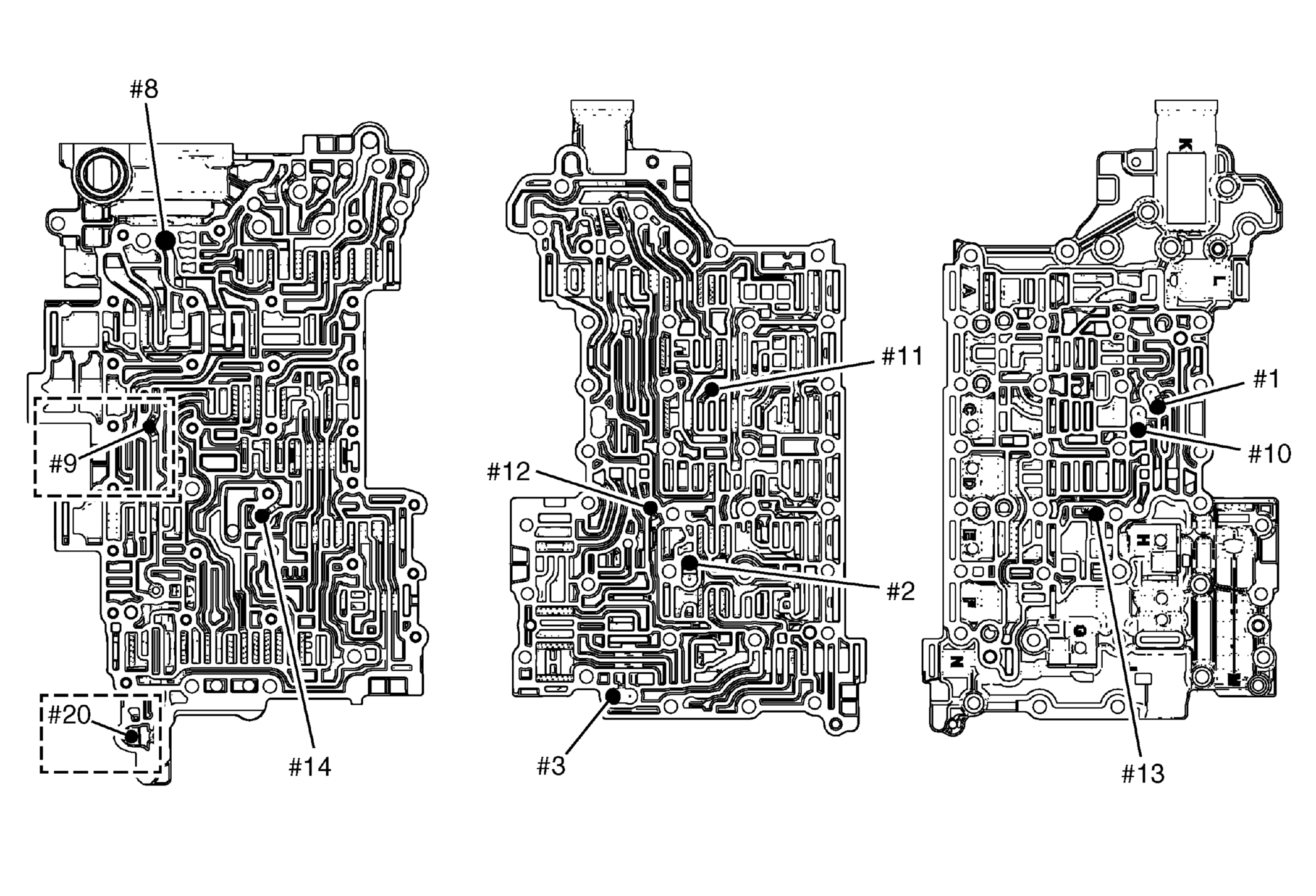

Ball Check Valve Locations
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| I.D. | Input Oil | Input Oil | Output Oil |
|---|---|---|---|
| #1 | C23468 | Reverse | C23468/Reverse |
| #2 | C45678R Drive Feed | Reverse | C45678 Feed |
| #3 | Default Latch | S9 On/Off Signal | Default Latch/S9 On/Off Signal |
| #8 | Line | - | Secondary Line |
| #9 | Line | - | Line |
| #10 | C23468 | C45678R | C45678R/C23468 |
| #11 | C13567/C23468 Feed | - | C13567/C23468 Feed |
| #12 | Actuator Feed | - | C45678R Feedback |
| #13 | C45678R Feed | - | C45678R Feed |
| #14 | C1278R Feedback | - | Actuator Feed |
| #20 | Line | - | Line |
