Hood Rear Outer Air Inlet Seal Replacement
Hood Rear Outer Air Inlet Seal Replacement

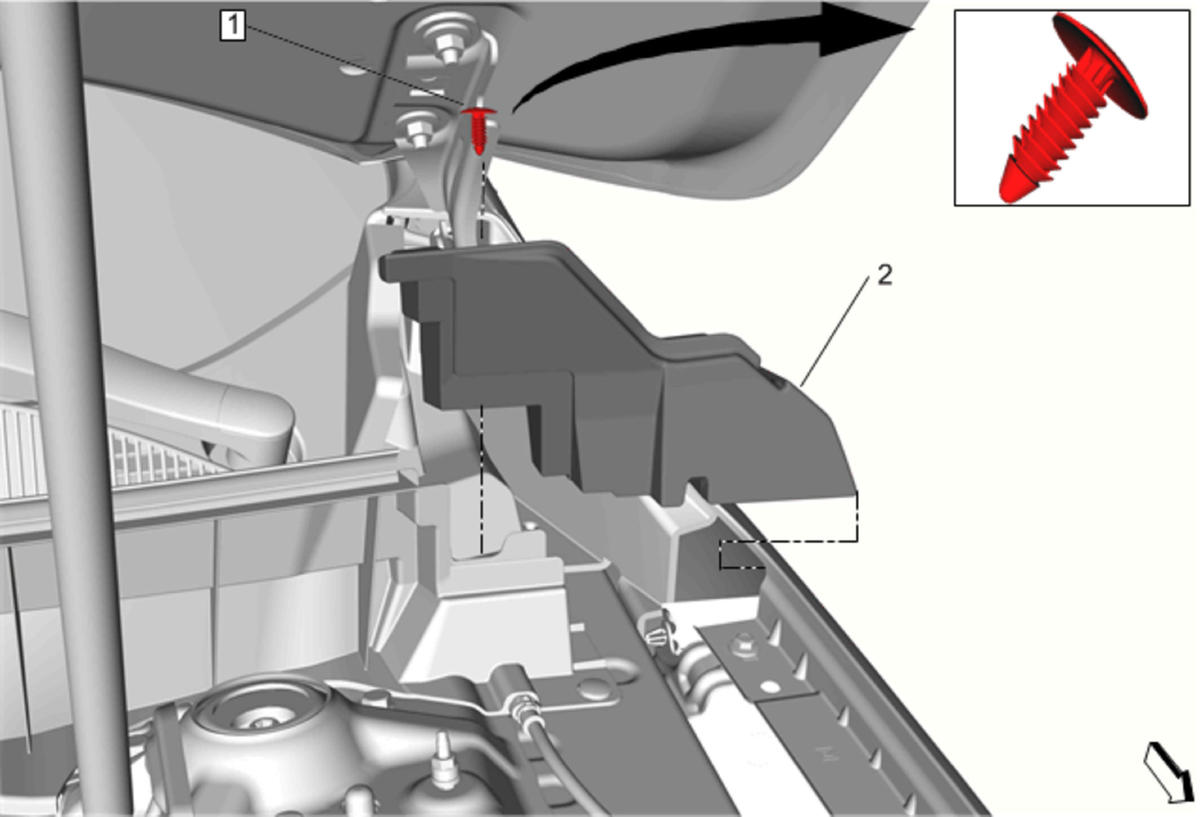

Fig 1: Hood Rear Outer Air Inlet Seal
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Hood Rear Outer Air Inlet Seal Retainer
2
Hood Rear Outer Air Inlet Seal
Procedure
Using a trim type tool, release the retainer and gentle pull on the seal to remove the seal from under the front fender.
