Liftgate Wiring Harness Replacement

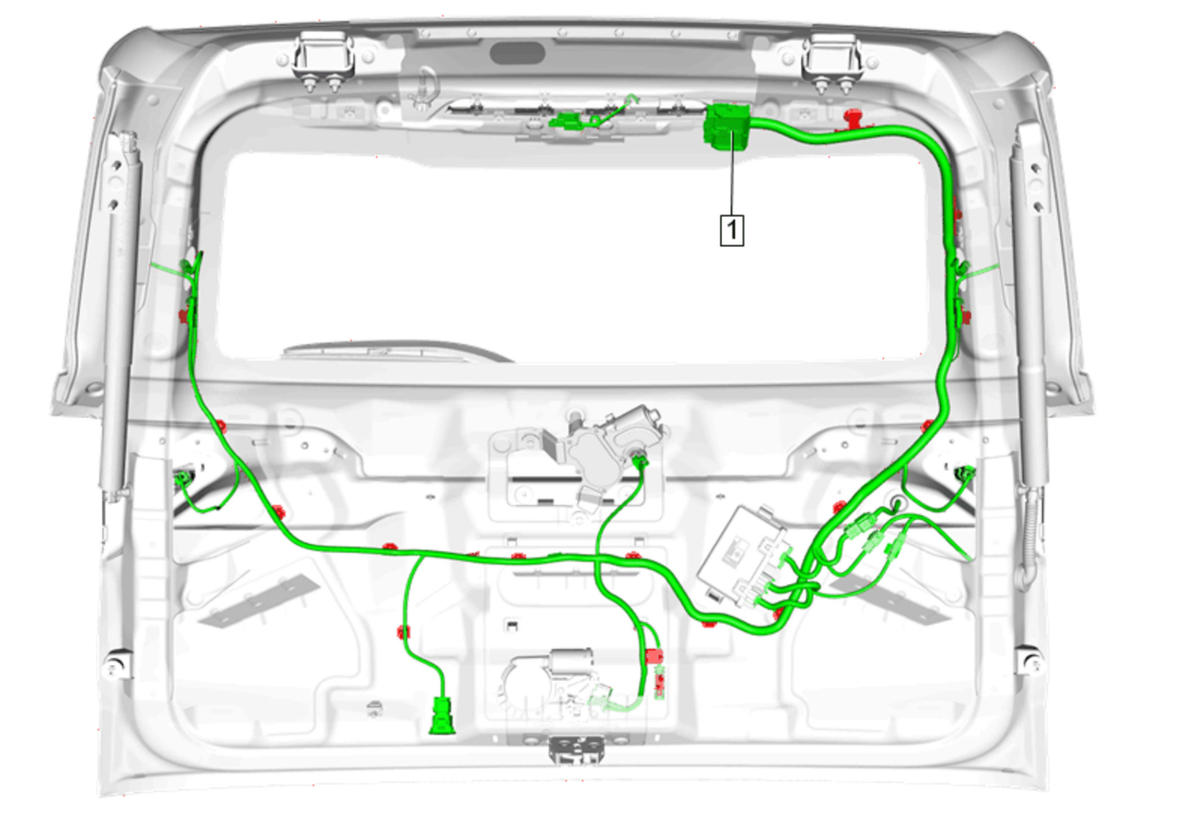

Fig 1: Liftgate Wiring Harness
GM4382945Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Procedure
Liftgate Lower Trim Finish Panel Replacement
1 Liftgate Wiring Harness
Procedure
Disconnect all electrical connectors.
NOTE:

Typical wiring harness shown, individual harness may be different due to option content.
