Front Side Door Wiring Harness Replacement

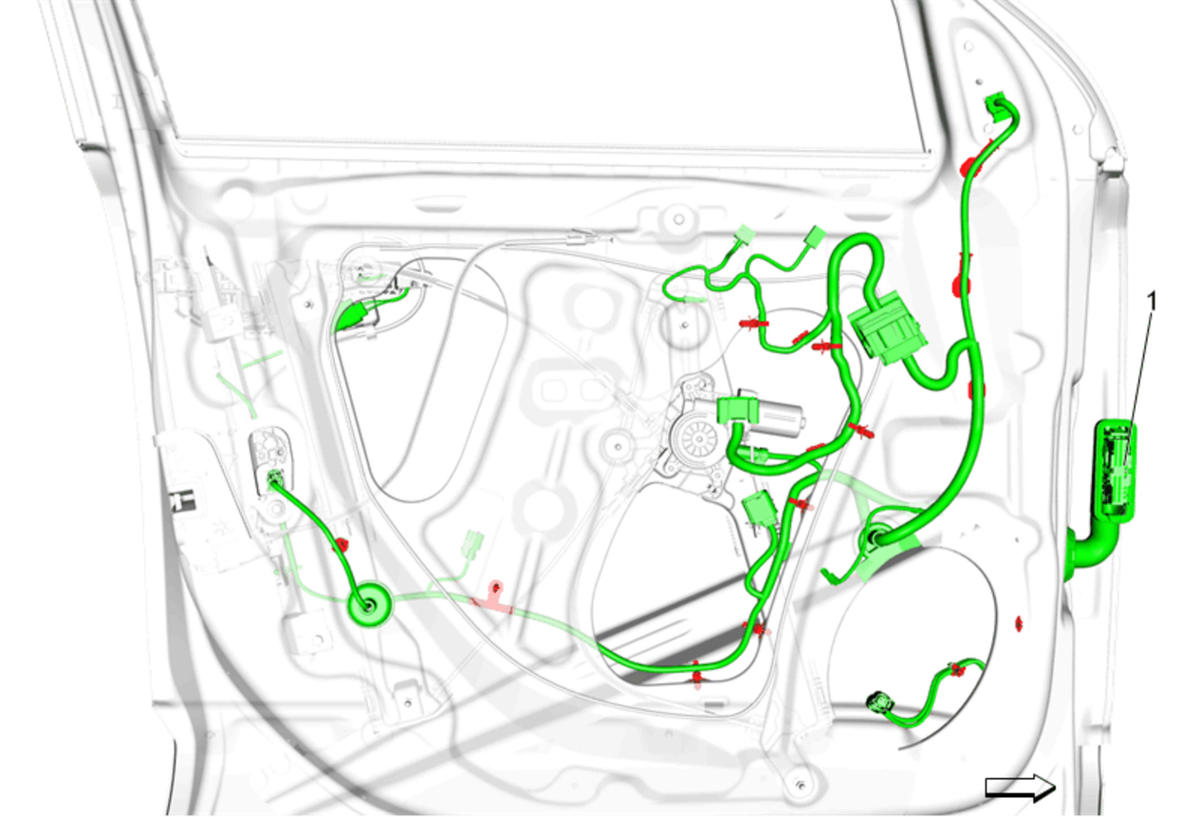

Fig 1: Front Side Door Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Side Door Water Deflector Replacement Radio Front Side Door Speaker Replacement
1	Front Side Door Wiring Harness Procedure Disconnect all electrical connectors. NOTE: Typical wiring harness shown, individual harness may be different due to option content.

Callout

Component Name

Preliminary Procedures

Front Side Door Wiring Harness
Procedure
Disconnect all electrical connectors.

NOTE:

Typical wiring harness shown, individual harness may be different due to option content.
