Front Side Door Weatherstrip Replacement - Door Side

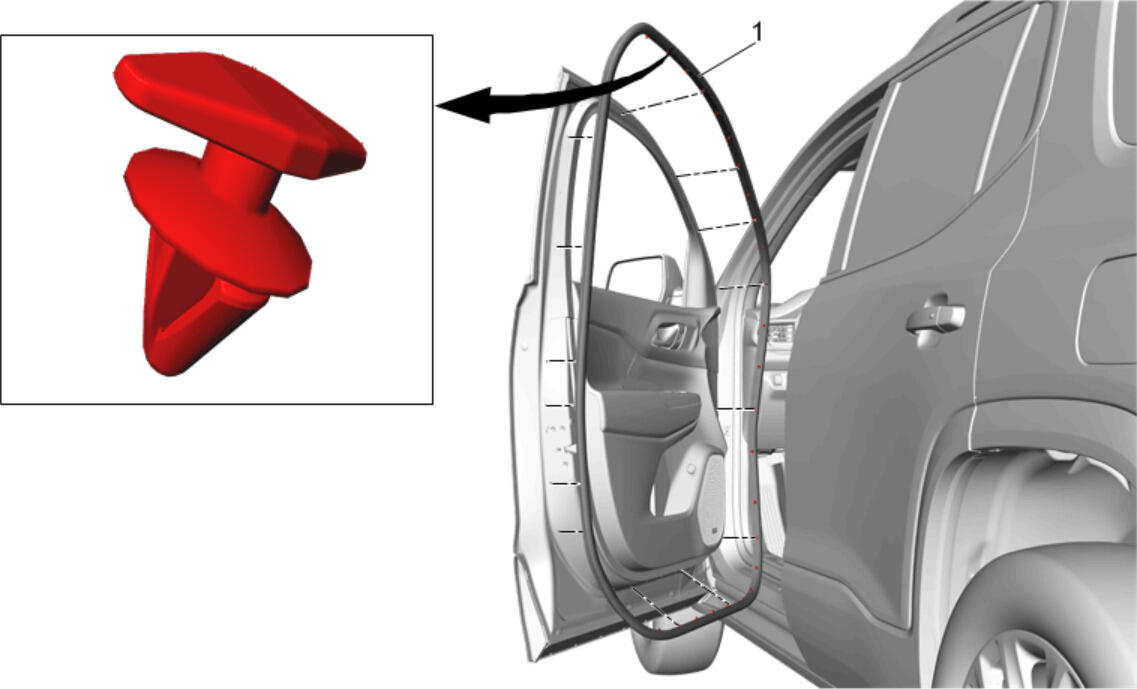

Fig 1: Front Side Door Weatherstrip Replacement - Door Side
GM4412796Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Check Link Replacement
1 Front Side Door Weatherstrip - Door Side
Procedure
Using the appropriate tool, remove the weatherstrip retainers from around the door flange.
