Transmission Fluid Cooler Inlet Pipe Replacement

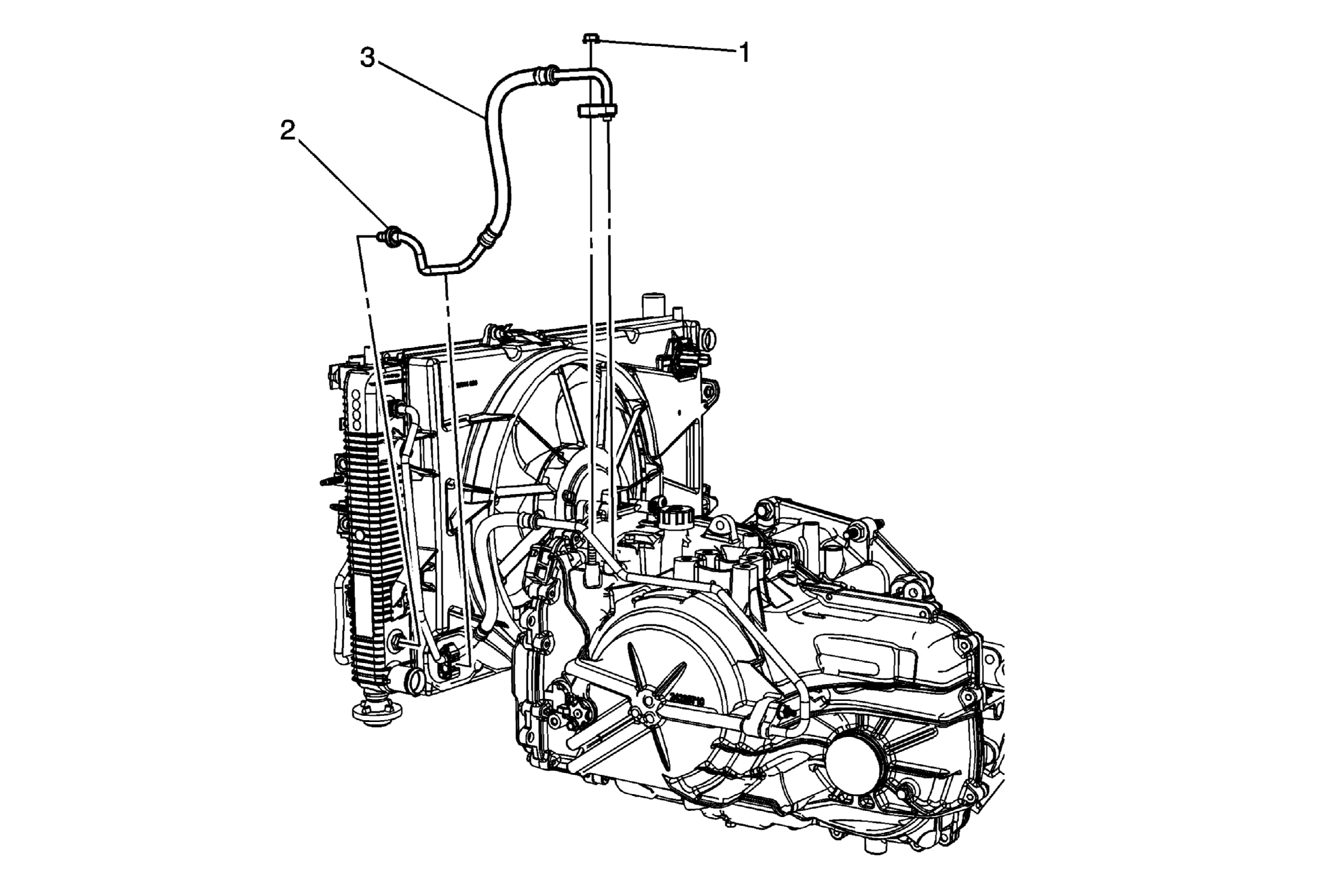

Fig 1: Transmission Fluid Cooler Inlet Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Transmission Fluid Cooler Inlet Pipe Nut CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Transmission Fluid Cooler Inlet Pipe Quick Disconnect Procedure Disconnect the transmission line from the radiator. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
3	Transmission Fluid Cooler Inlet Pipe Procedure Install new sealing washers. Note the routing of the transmission line to ensure proper installation. Remove the transmission line from the clips securing the line to the transmission and fan shroud. Inspect the transmission fluid level. Refer to Transmission Fluid Level and Condition Check .
