Stabilizer Shaft Link Replacement

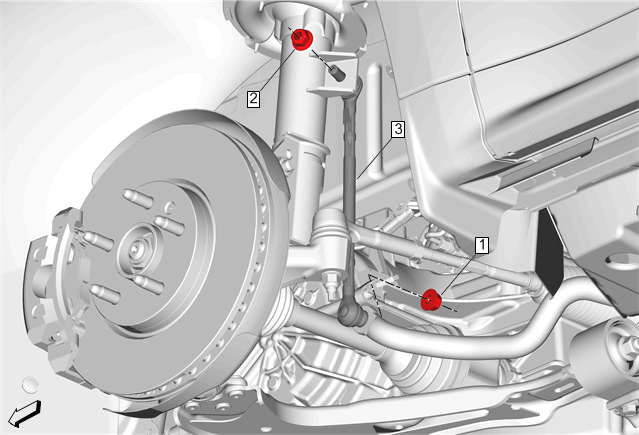

Fig 1: Stabilizer Shaft Link

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
1	Lower Front Stabilizer Shaft Link Nut CAUTION: Refer to Fastener Caution . Tighten 75 N.m (55 lb ft)
2	Upper Front Stabilizer Shaft Link Nut Tighten 85 N.m (63 lb ft)
3	Front Stabilizer Shaft Link
