Module Power, Ground, and Serial Data (M7U or M7W)

WARNING: This page is about a different variant/trim than selected.

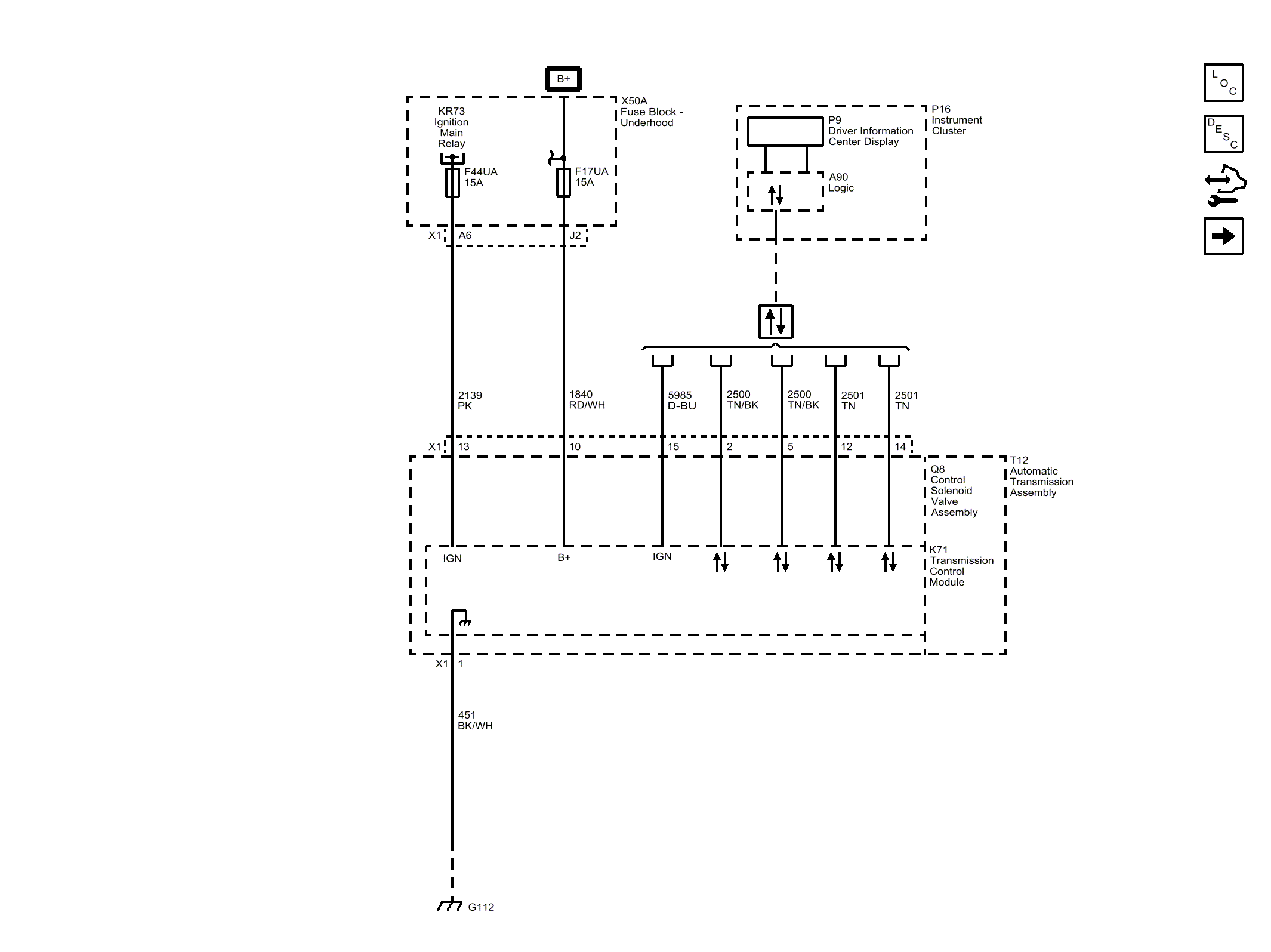

Fig 1: Module Power, Ground, and Serial Data (M7U or M7W)
GM4069940Courtesy of GENERAL MOTORS COMPANY
