Internal Mode Switch and Tap Up/Tap Down Switches (M7U or M7W)

WARNING: This page is about a different variant/trim than selected.

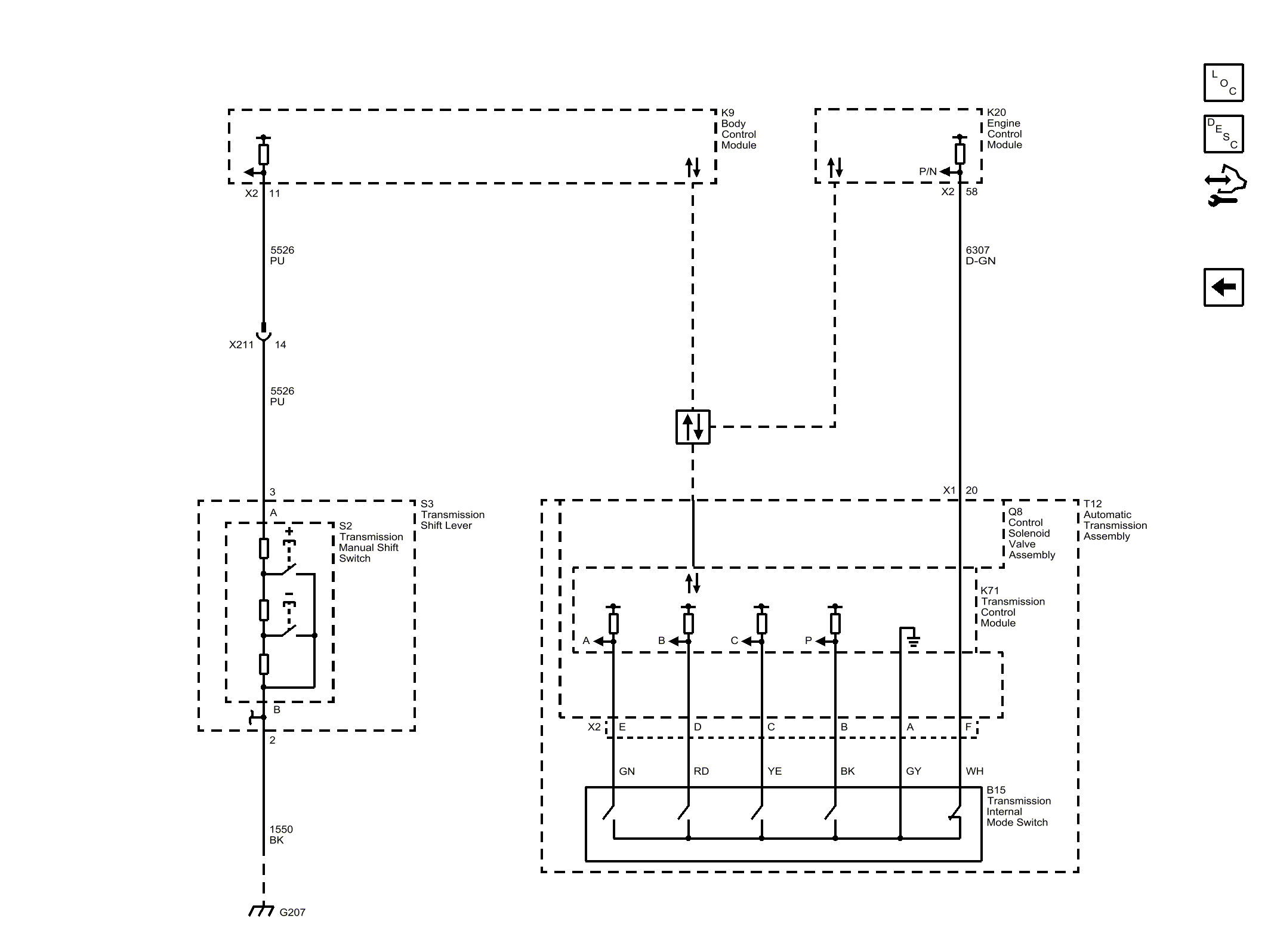

Fig 1: Internal Mode Switch and Tap Up/Tap Down Switches (M7U or M7W)
GM4069944Courtesy of GENERAL MOTORS COMPANY
