Transmission Rear Mount Bracket Replacement (FWD)

WARNING: This page is about a different variant/trim than selected.

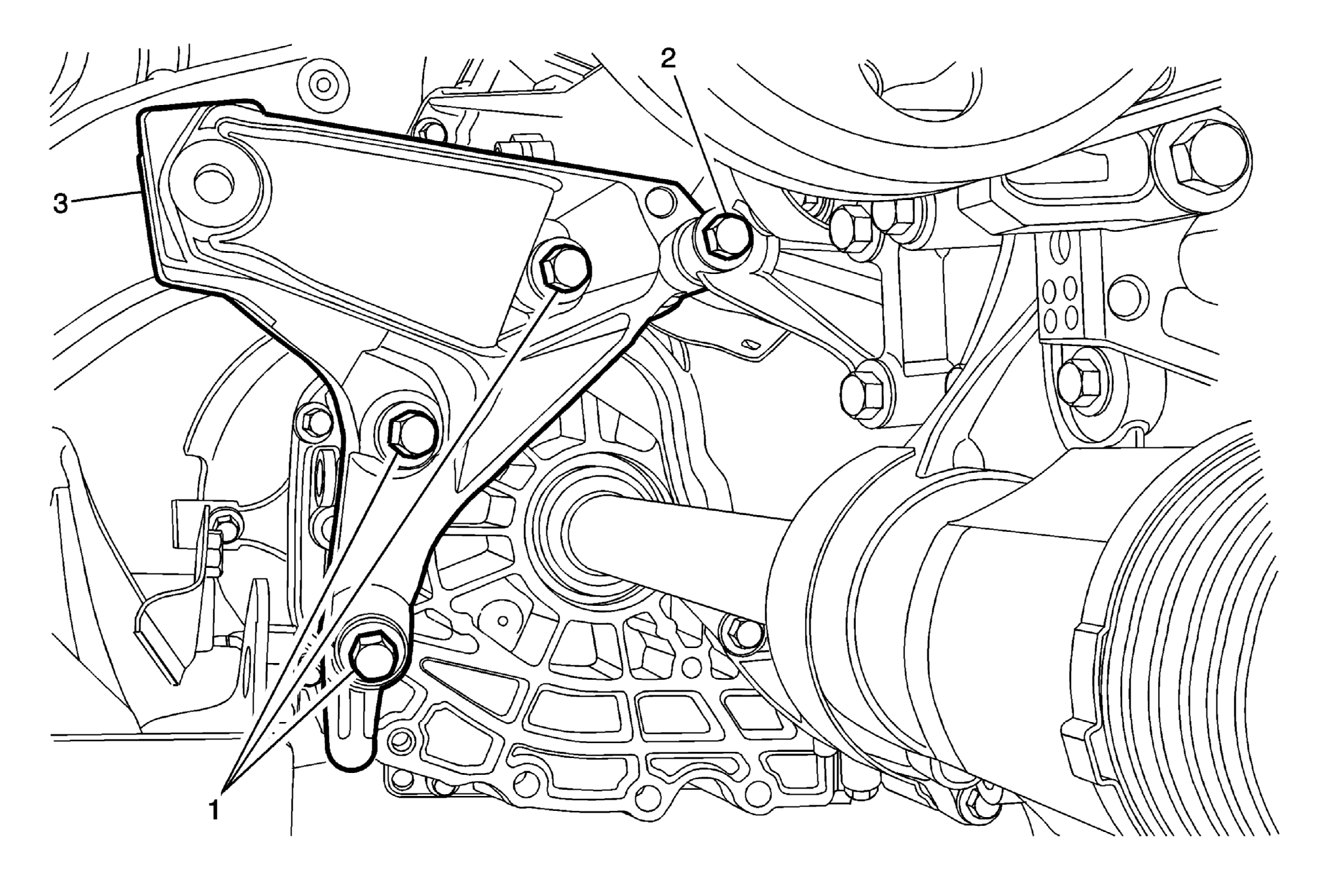

Fig 1: Transmission Rear Mount Bracket (FWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: To avoid any vehicle damage, serious personal injury or death when major components are removed from the vehicle and the vehicle is supported by a hoist, support the vehicle with jack stands at the opposite end from which the components are being removed and strap the vehicle to the hoist. WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the right front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation Remove the rear mount. Refer to Transmission Rear Mount Replacement
1	Transmission Rear Mount Bracket Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Support the transmission. Tighten 100 N.m (74 lb ft)
2	Transmission Rear Mount Bracket Fastener (Qty: 1) Tighten 57 N.m (42 lb ft)
3	Transmission Rear Mount Bracket
