Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery tray. Refer to Battery Tray Replacement .
  2. Remove the underhood electrical center.
  3. Support the engine and transmission.
    4. Fig 1: Left Transmission Mounting Bolts
    GM2068583Courtesy of GENERAL MOTORS COMPANY
  4. Remove the left transmission mount to transmission bolts (1).

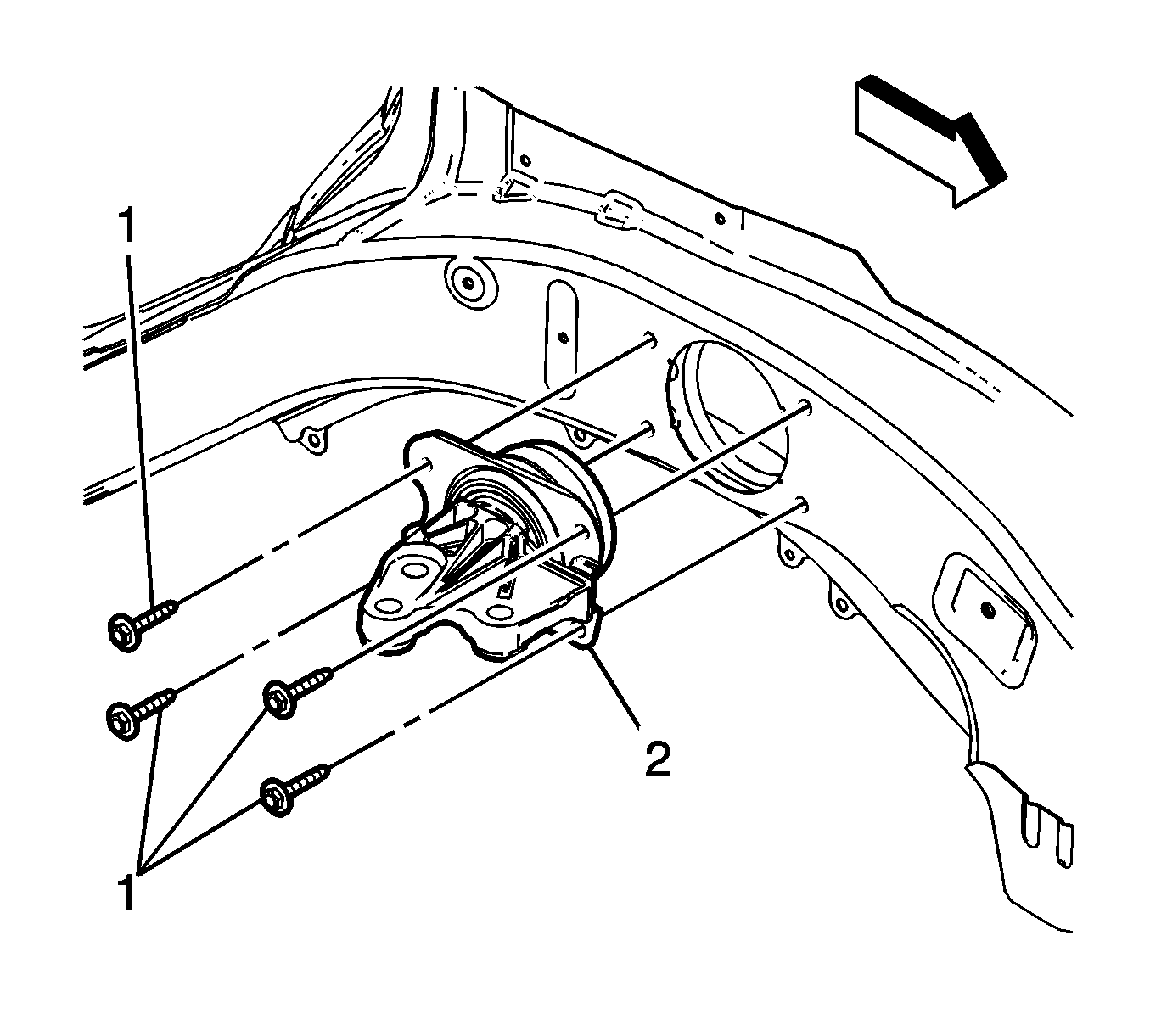

    5. Fig 2: Left Transmission Mount And Frame Rail Bolts
    GM2068581Courtesy of GENERAL MOTORS COMPANY
  5. Remove the left transmission mount to frame rail bolts (1).
  6. Lower the transmission enough to provide clearance for the left transmission mount.
  7. Remove the left transmission mount (2).
