Transmission Front Mount Replacement

WARNING: This page is about a different variant/trim than selected.

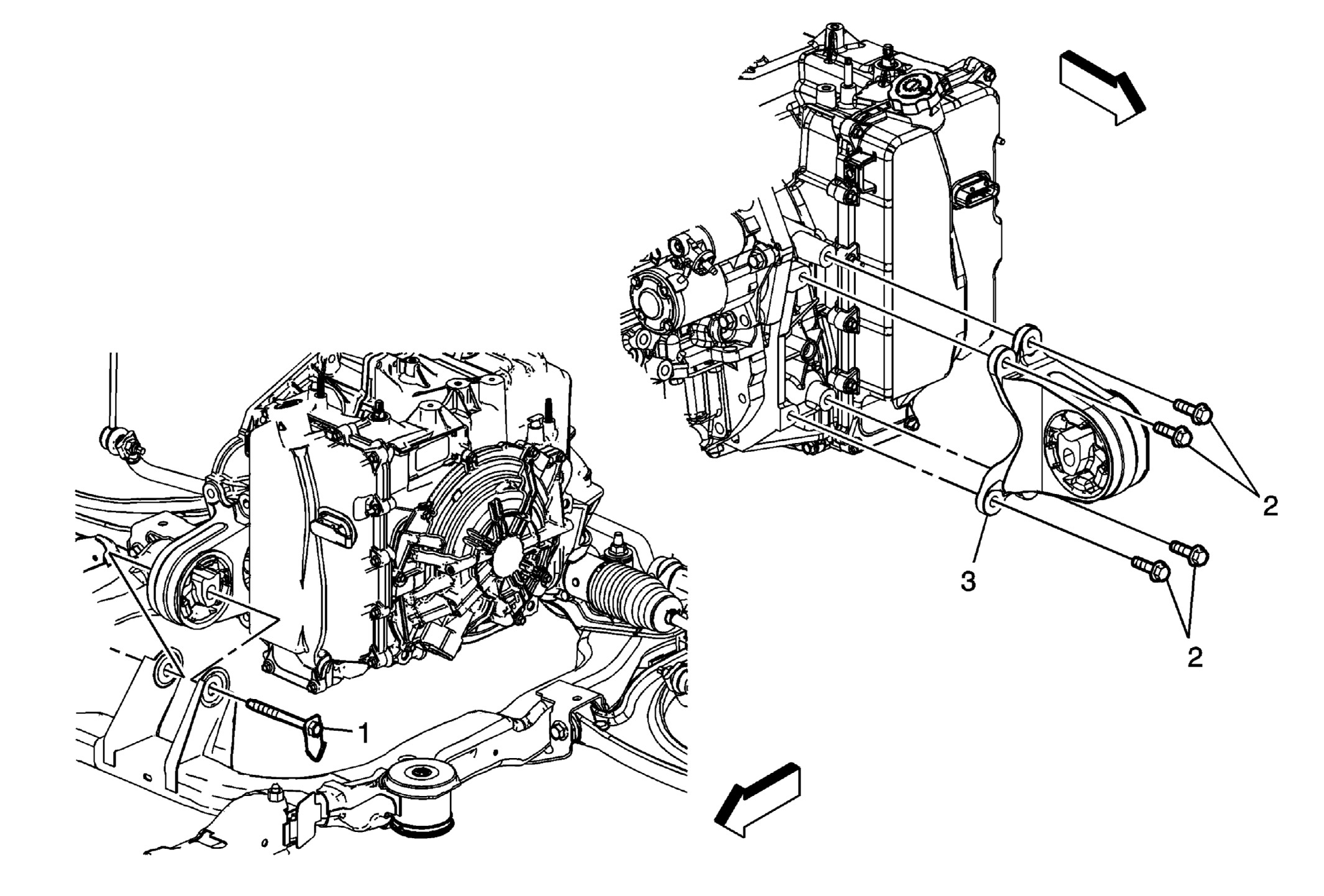

Fig 1: Transmission Front Mount

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Support the transmission with a transmission jack.
1	Front Transmission Mount Thru Bolt CAUTION: Refer to Fastener Caution . Tighten 100 N.m (74 lb ft)
2	Front Transmission Mount Bolt (Qty: 4) Tighten 57 N.m (42 lb ft)
3	Front Transmission Mount
