Transmission Control Lever Knob Replacement
WARNING: This page is about a different variant/trim than selected.

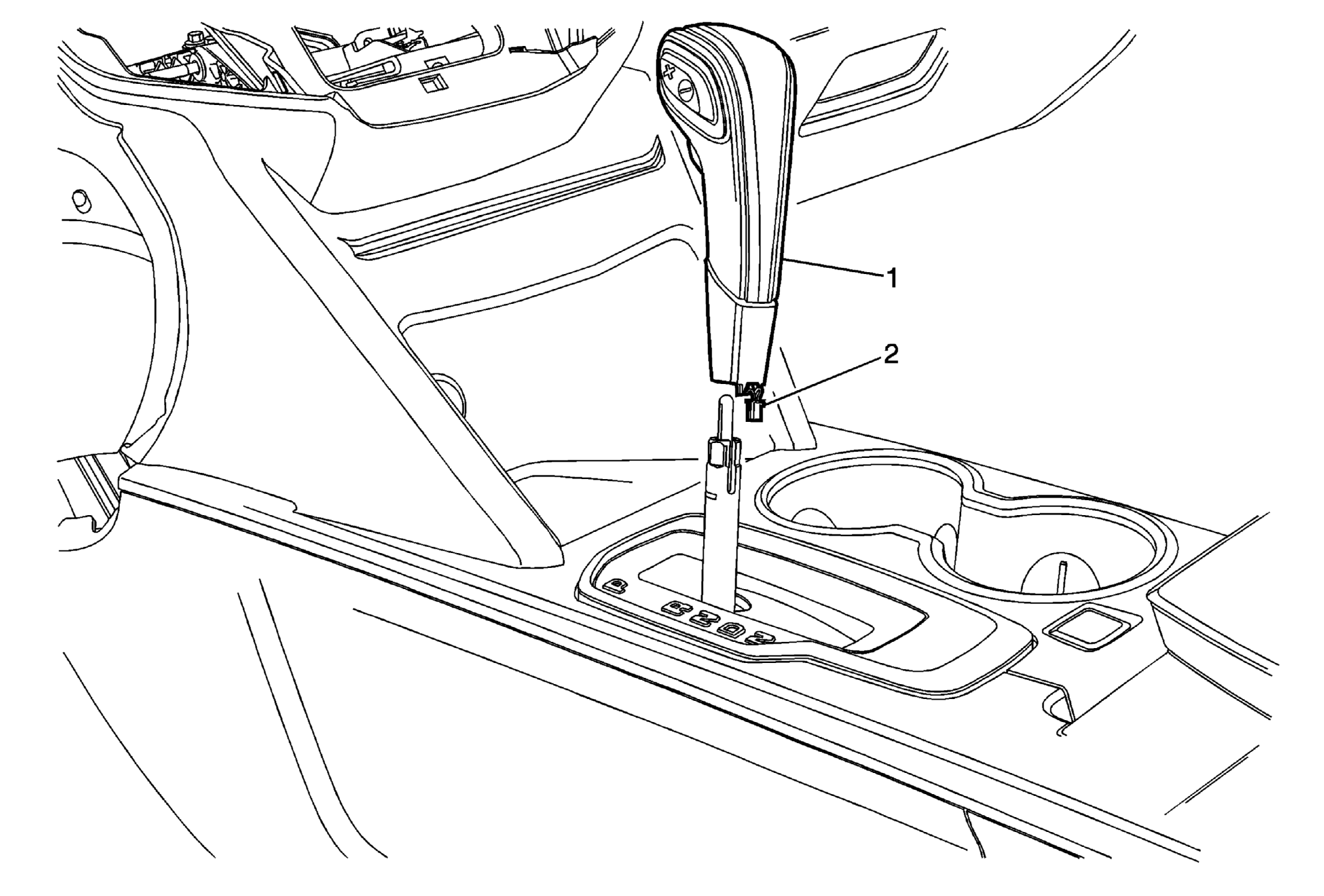

| Callout | Component Name |
|---|---|
| 1 | Shift Control Knob TIP: Pull knob up off shift lever. Considerable effort may be required to remove knob from shift control lever. TIP: Place shift lever in the Neutral position. |
| 2 | Shift Control Connector Procedure Verify the operation of the tap up, tap down switch. TIP: To install, use a small flat tool to push connector into receiving connector. |
