Throttle Body Assembly Replacement

WARNING: This page is about a different variant/trim than selected.

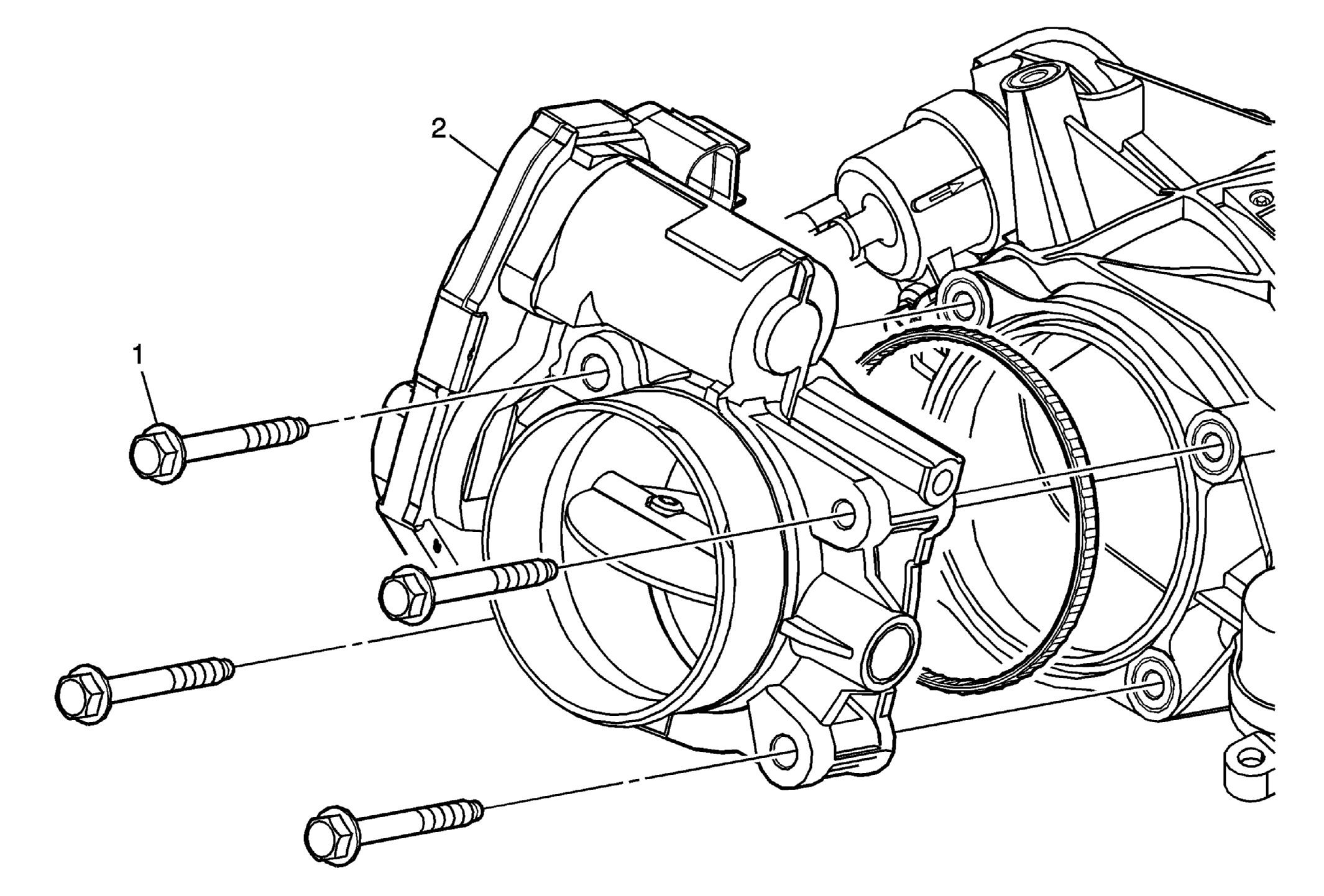

Fig 1: View Of Throttle Body Assembly & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Throttle Body Procedure Disconnect the throttle body harness connector. Install a NEW throttle body seal. Perform the throttle learn procedure. Refer to Throttle or Idle Learn .

Callout

Component Name

Preliminary Procedure
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .

Bolt (Qty: 4)

CAUTION:

Tighten
10 N.m (89 lb in)

Throttle Body

Procedure
