Fuel Tank Pressure Sensor Replacement (Without NU6)

WARNING: This page is about a different variant/trim than selected.

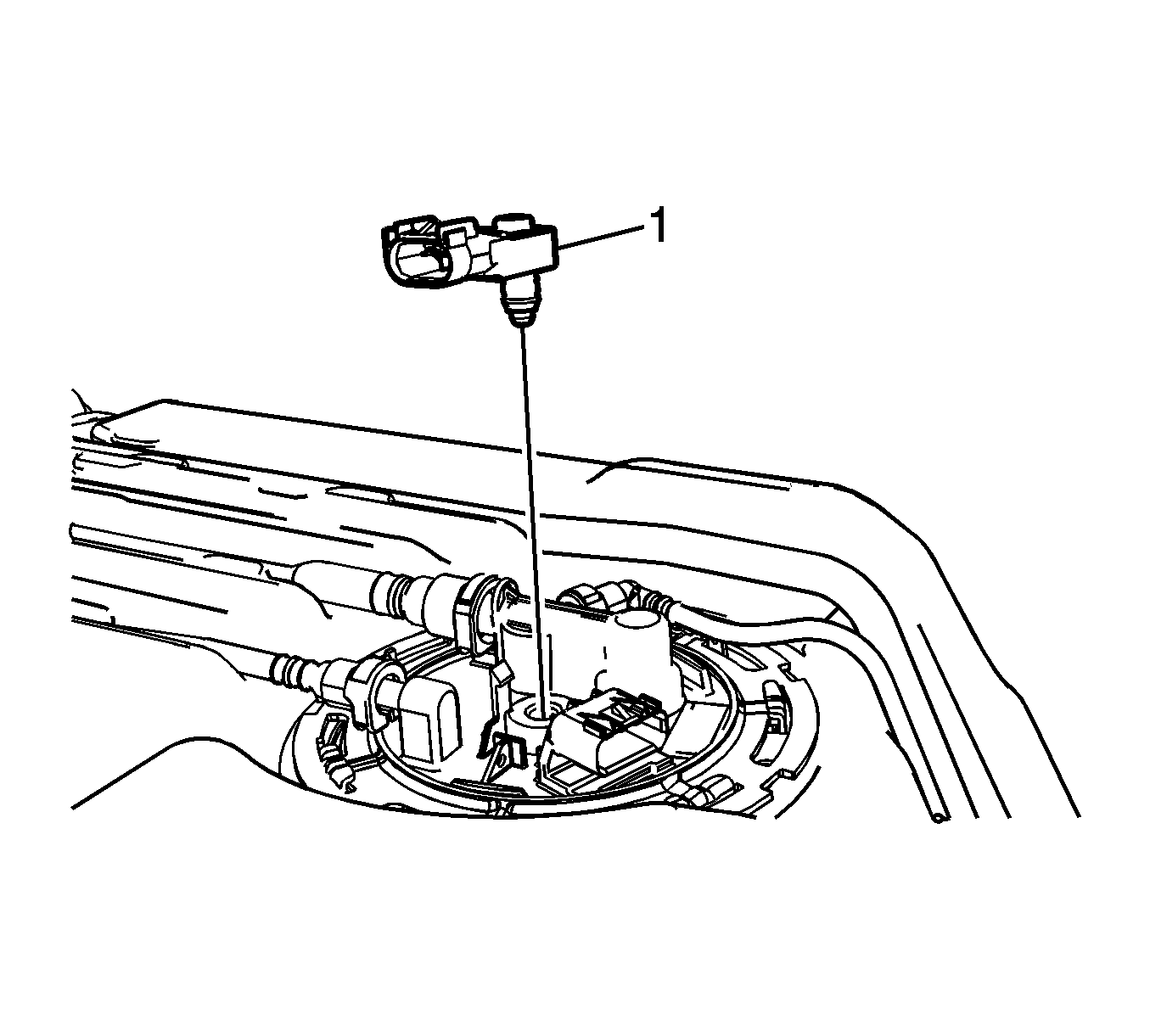

Fig 1: Fuel Tank Pressure Sensor (Without NU6)
GM2239799Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Lower the fuel tank. Refer to Fuel Tank Replacement (AWD) Fuel Tank Replacement (FWD) .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Fuel Tank Pressure Sensor

Procedure

  1. Use a flat bladed tool to remove the sensor.
  2. Disconnect the electrical connector.
