Fuel Line Replacement - Chassis

WARNING: This page is about a different variant/trim than selected.

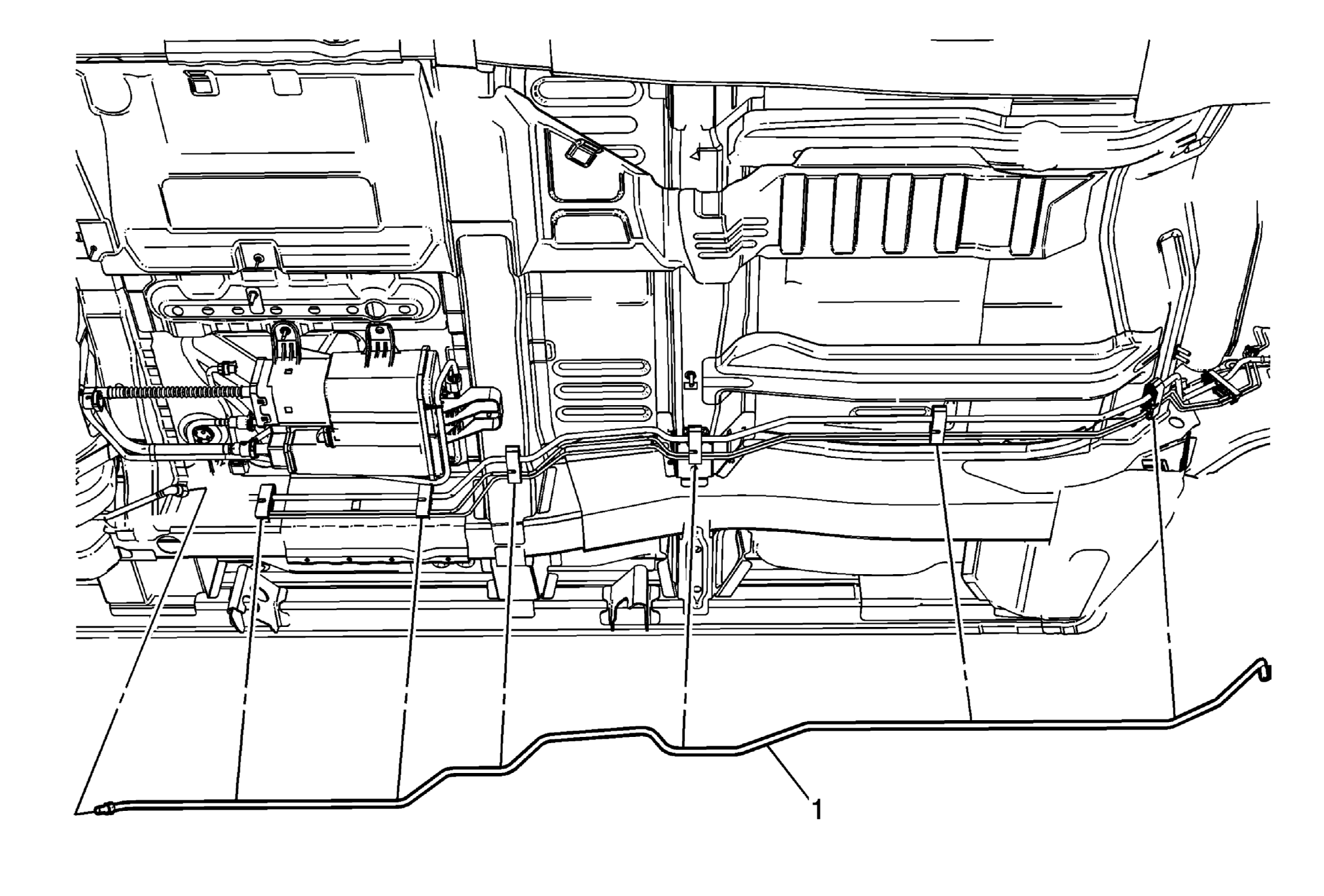

Fig 1: Fuel Line - Chassis

GM2240902

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Relieve the fuel system pressure. Refer to Fuel Pressure Relief .
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Disconnect the quick connectors. Refer to Metal Collar Quick Connect Fitting Service , and Plastic Collar Quick Connect Fitting Service .

1

Fuel Feed Line
Procedure
Disengage the line from the plastic retainers.
