Flexible Fuel Sensor Replacement
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY

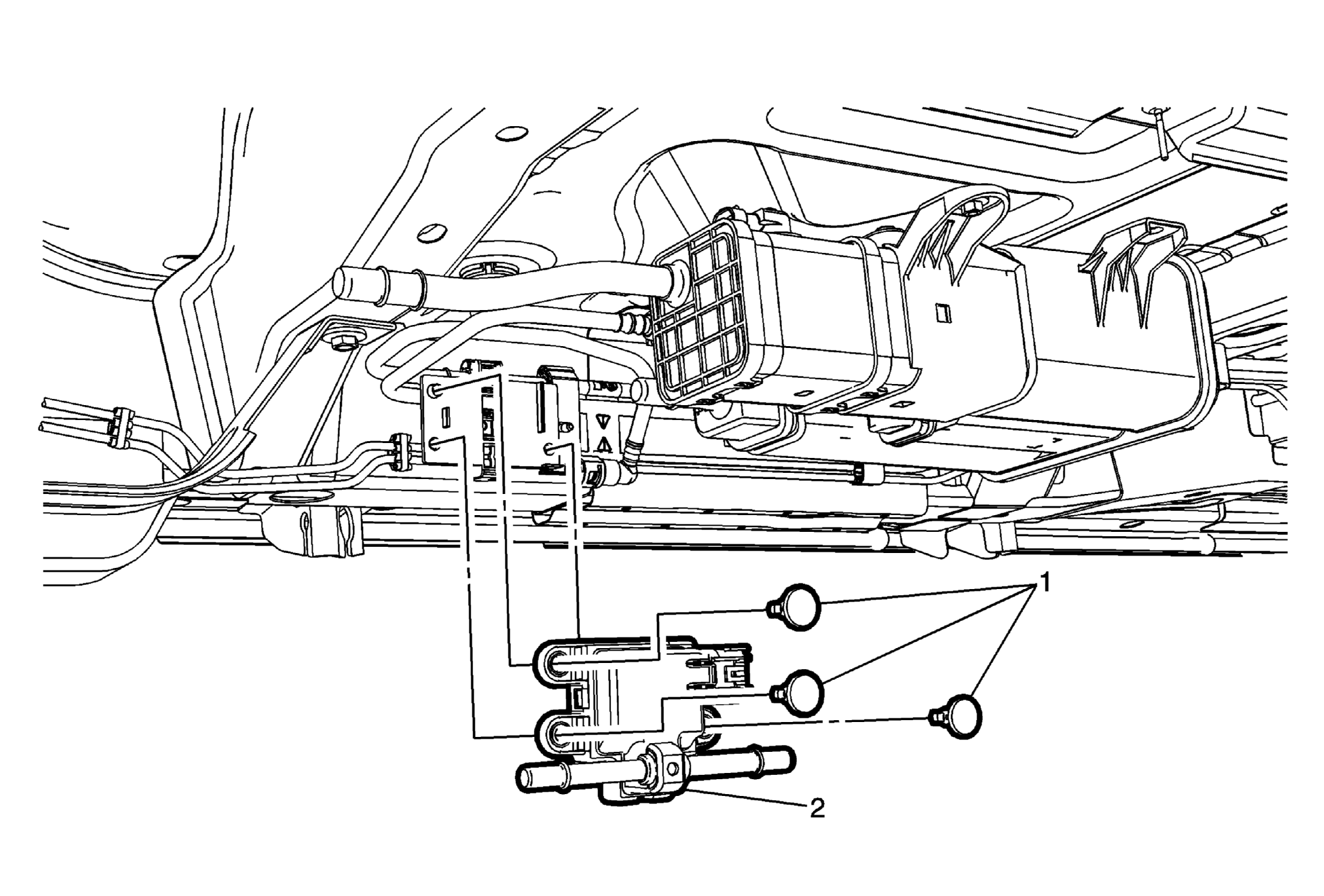

| Callout |
Component Name |
|
Preliminary Procedure
- Relieve the fuel system pressure. Refer to Fuel Pressure Relief
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.
|
| 1 |
Plastic Retainers
Procedure
Squeeze the plastic retainers from the back in order to release. |
| 2 |
Flex Fuel Sensor Procedure
- Disconnect the fuel line connectors. Refer to Plastic Collar Quick Connect Fitting Service .
- Release the plastic retaining tab.
- Disconnect the electrical connector.
|
