Evaporative Emission Line Replacement - Chassis to Canister

WARNING: This page is about a different variant/trim than selected.

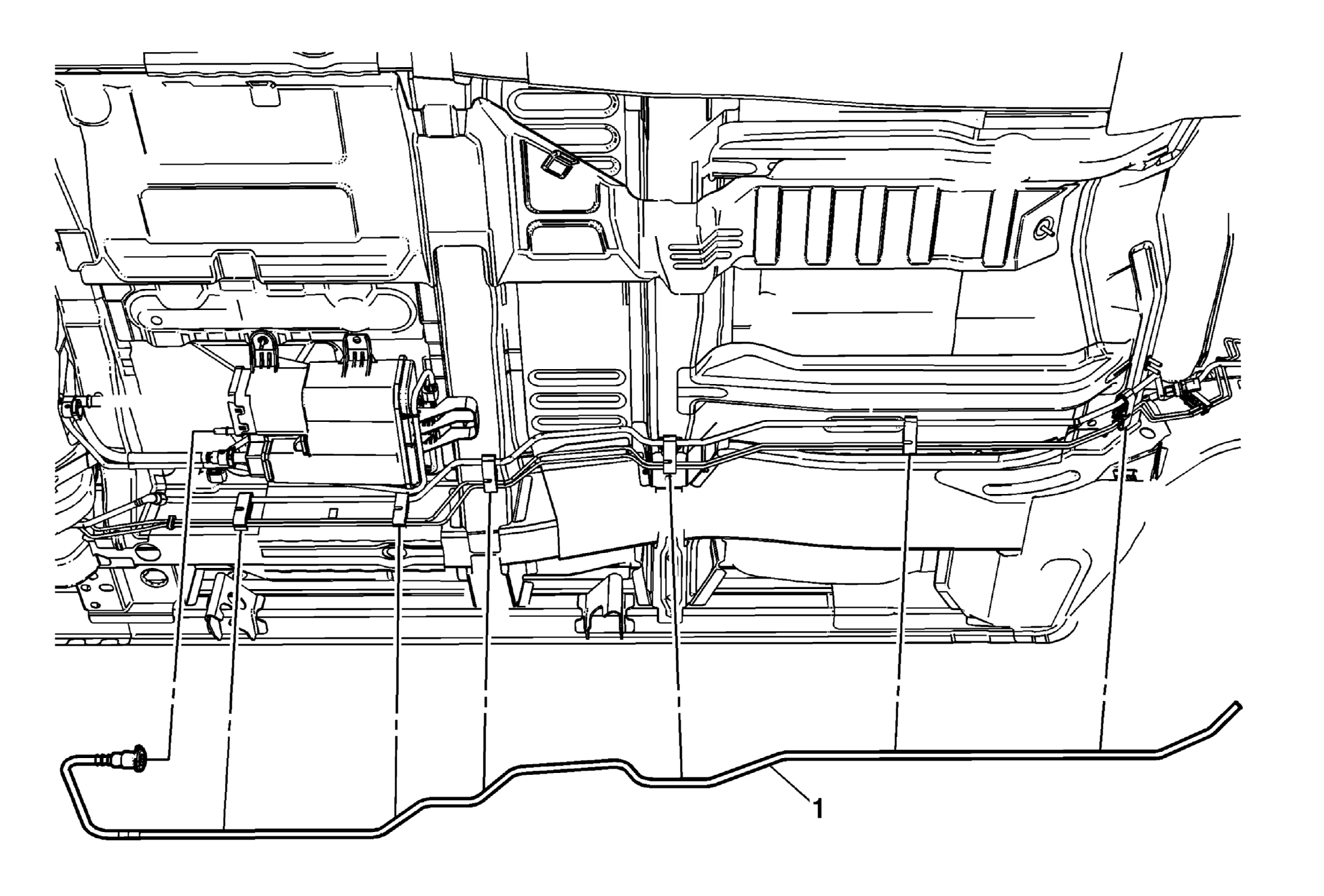

Fig 1: Evaporative Emission Line - Chassis to Canister

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Disconnect the quick connectors. Refer to Plastic Collar Quick Connect Fitting Service .
1	Evaporative Emission Line Procedure Disengage the line from the plastic retainers.

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Disconnect the quick connectors. Refer to Plastic Collar Quick Connect Fitting Service .

Evaporative Emission Line
Procedure
Disengage the line from the plastic retainers.
