Air Cleaner Element Replacement

WARNING: This page is about a different variant/trim than selected.

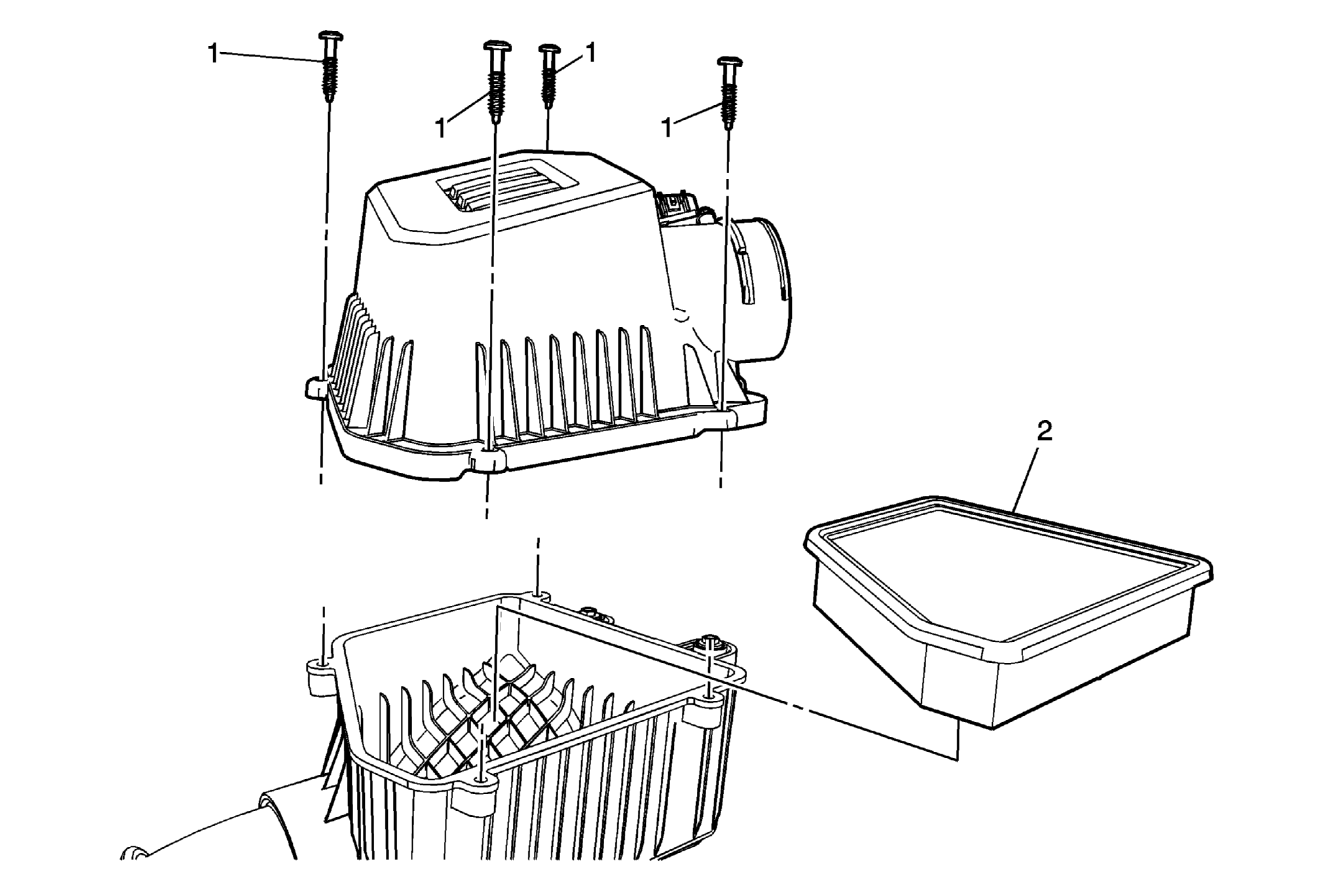

Fig 1: Air Cleaner Element

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the air cleaner outlet duct from the air cleaner. Refer to Air Cleaner Outlet Duct Replacement .
1	Air Cleaner Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Air Cleaner Element Procedure Disconnect the mass airflow with intake air temperature sensor. Disconnect the throttle inlet absolute pressure sensor.

Callout

Component Name

Preliminary Procedure
Disconnect the air cleaner outlet duct from the air cleaner. Refer to Air Cleaner Outlet Duct Replacement .

Air Cleaner Fastener (Qty: 4)

CAUTION:

Tighten
2 N.m (18 lb in)

Air Cleaner Element

Procedure
