Installation Procedure

WARNING: This page is about a different variant/trim than selected.

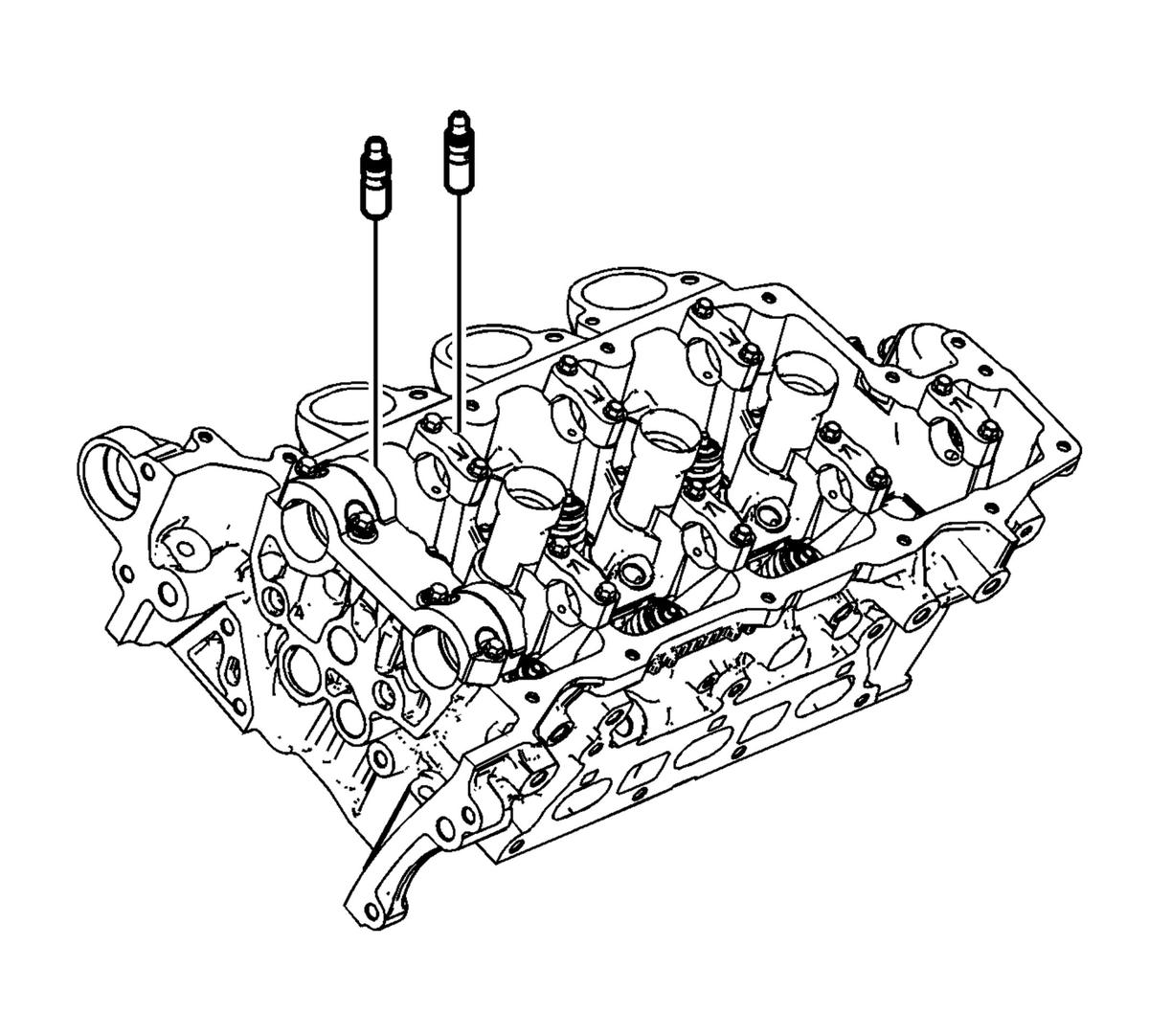

    Fig 1: Valve Lifter - Left Side
    GM1977903Courtesy of GENERAL MOTORS COMPANY
  1. Install the lifters.
  2. Install the rocker arms. Refer to Valve Rocker Arm Replacement - Left Side .
  3. Install the camshafts. Refer to Camshaft Replacement - Left Side .
