Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove spark plugs. Refer to Spark Plug Replacement .
  2. Remove the engine front cover. Refer to Engine Front Cover Replacement .
  3. Remove the right side secondary camshaft drive chain components. Refer to Camshaft Timing Chain Components Removal .
  4. Remove the primary camshaft drive chain components. Refer to Camshaft Timing Chain Components Removal .

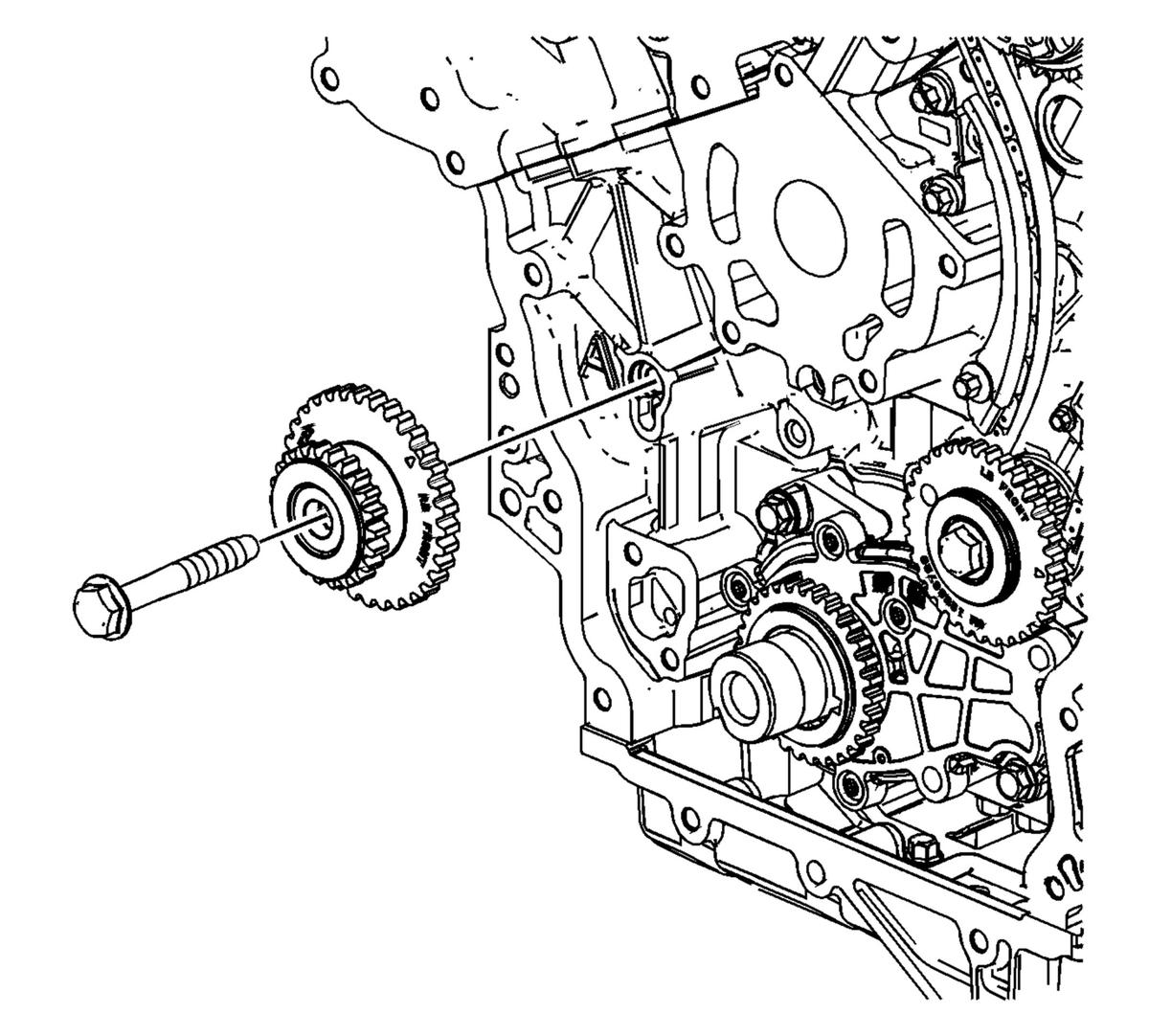

    5. Fig 1: Right Camshaft Intermediate Drive Chain Idler & Bolt
    GM1852626Courtesy of GENERAL MOTORS COMPANY
  5. Remove the right intermediate drive chain idler sprocket. Refer to Timing Chain Idler Sprocket Removal - Right Side .
