Positive Crankcase Ventilation Tube Replacement - Front

WARNING: This page is about a different variant/trim than selected.

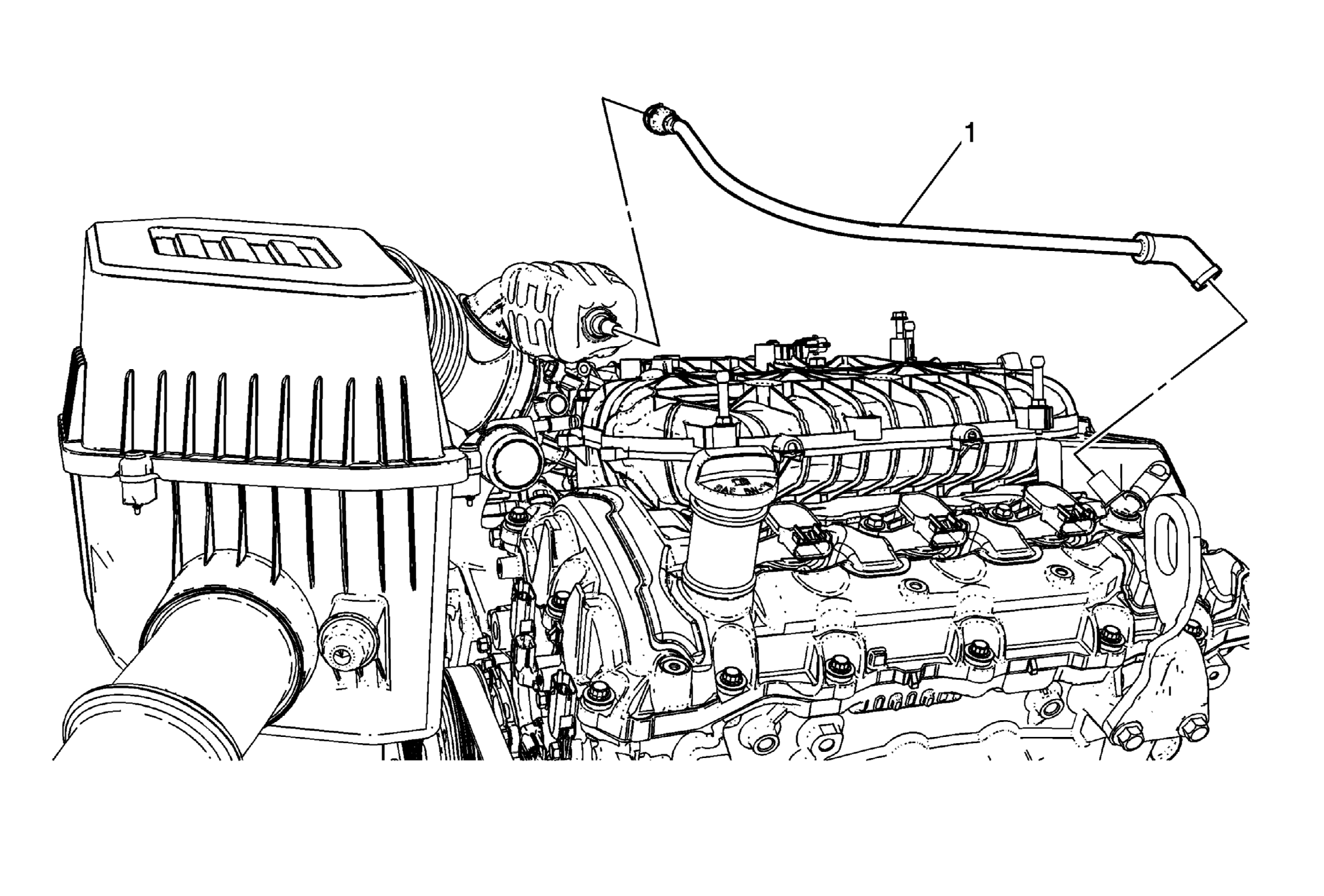

Fig 1: Positive Crankcase Ventilation Tube - Front
GM2243398Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1 Positive Crankcase Ventilation Tube
