Removal Procedure

WARNING: This page is about a different variant/trim than selected.

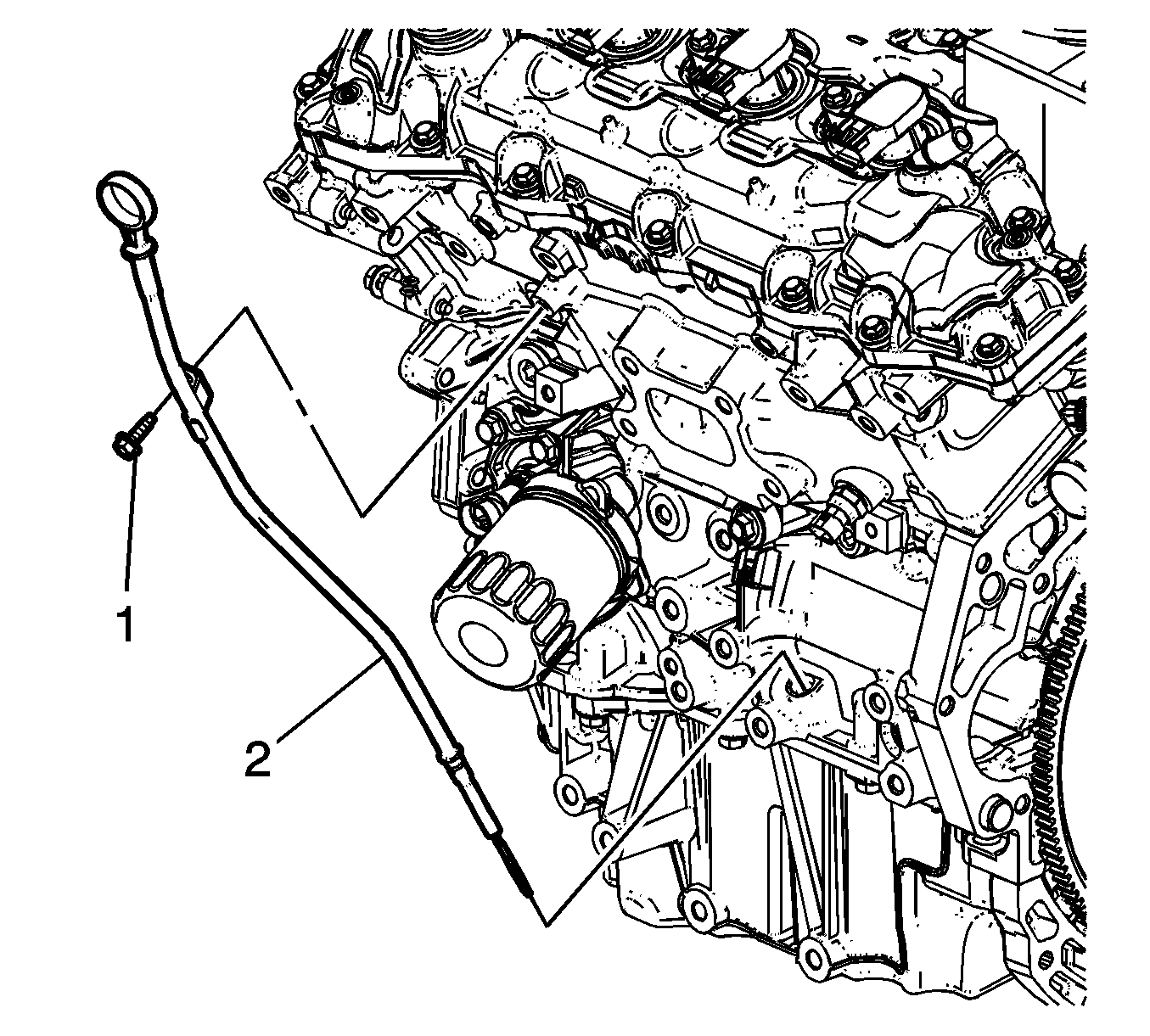

    Fig 1: Oil Level Indicator Tube
    GM2213526Courtesy of GENERAL MOTORS COMPANY
  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement
  2. Remove the oil level indicator tube bracket bolt (1).
  3. Remove the oil level indicator and tube (2) by sliding the tube out from the lower crankcase hole.
    4. Fig 2: Oil Level Indicator Tube O-Ring
    GM1583980Courtesy of GENERAL MOTORS COMPANY
  4. Remove and discard the O-ring from the oil level indicator tube if damaged.
