Installation Procedure

WARNING: This page is about a different variant/trim than selected.

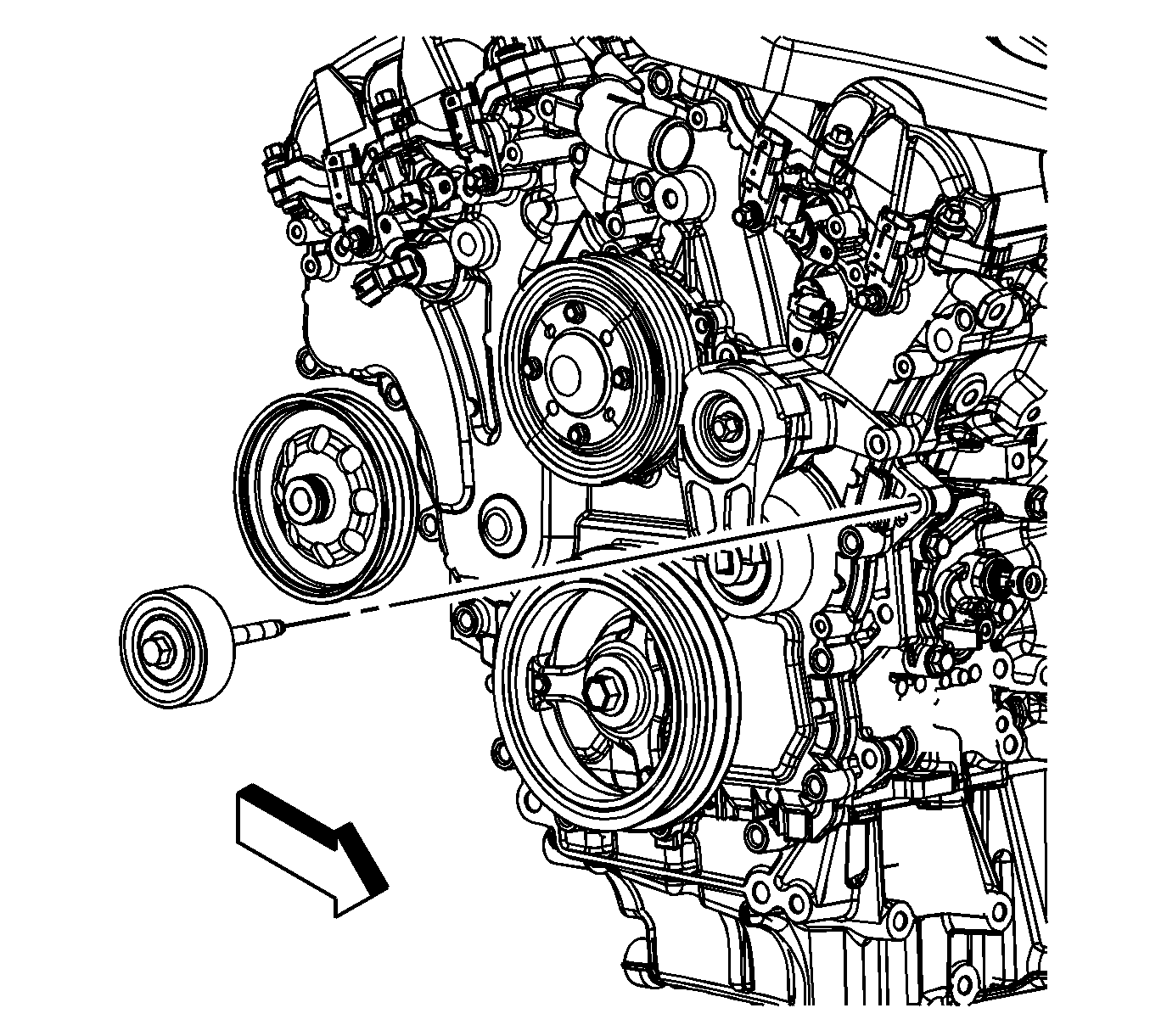

    Fig 1: Drive Belt Idler Pulley
    GM1826824Courtesy of GENERAL MOTORS COMPANY
  1. Install the drive belt idler pulley.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the drive belt idler pulley bolt and tighten to

    Tighten

    58 N.m (43 lb ft).

  3. Install the drive belt. Refer to Drive Belt Replacement .
