Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the ignition coils. Refer to Ignition Coil Replacement - Bank 2 .
  2. Disconnect and remove the engine harness from the camshaft cover.
  3. Remove the intake manifold. Refer to Intake Manifold Replacement .

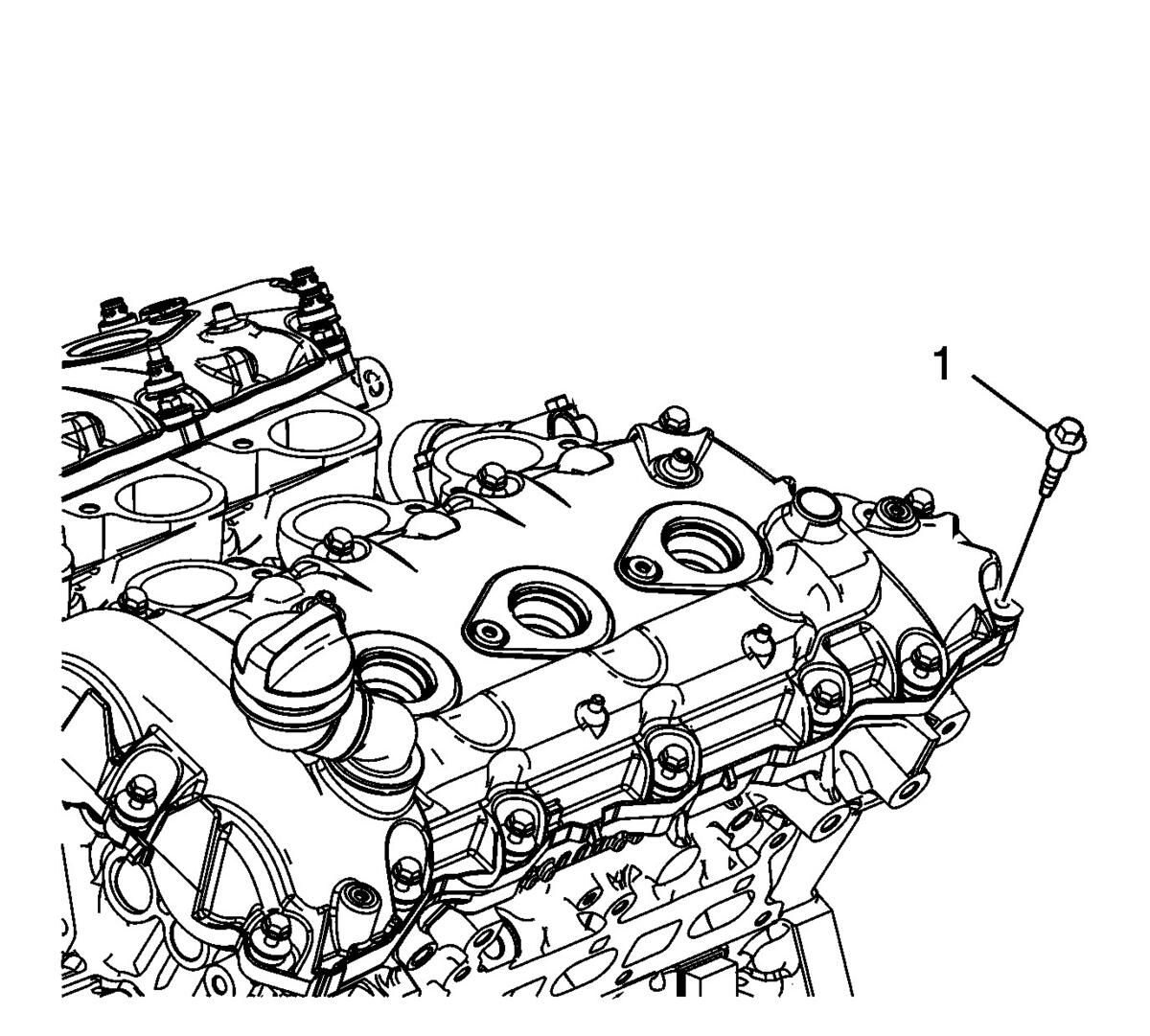

    4. Fig 1: View of Camshaft Cover and Bolts
    GM1977868Courtesy of GENERAL MOTORS COMPANY
  4. Remove the left camshaft cover bolts.
  5. Remove the left camshaft cover from the left cylinder head.
  6. Clean the mating surfaces of the cylinder head and the camshaft cover. Refer to Camshaft Cover Cleaning and Inspection

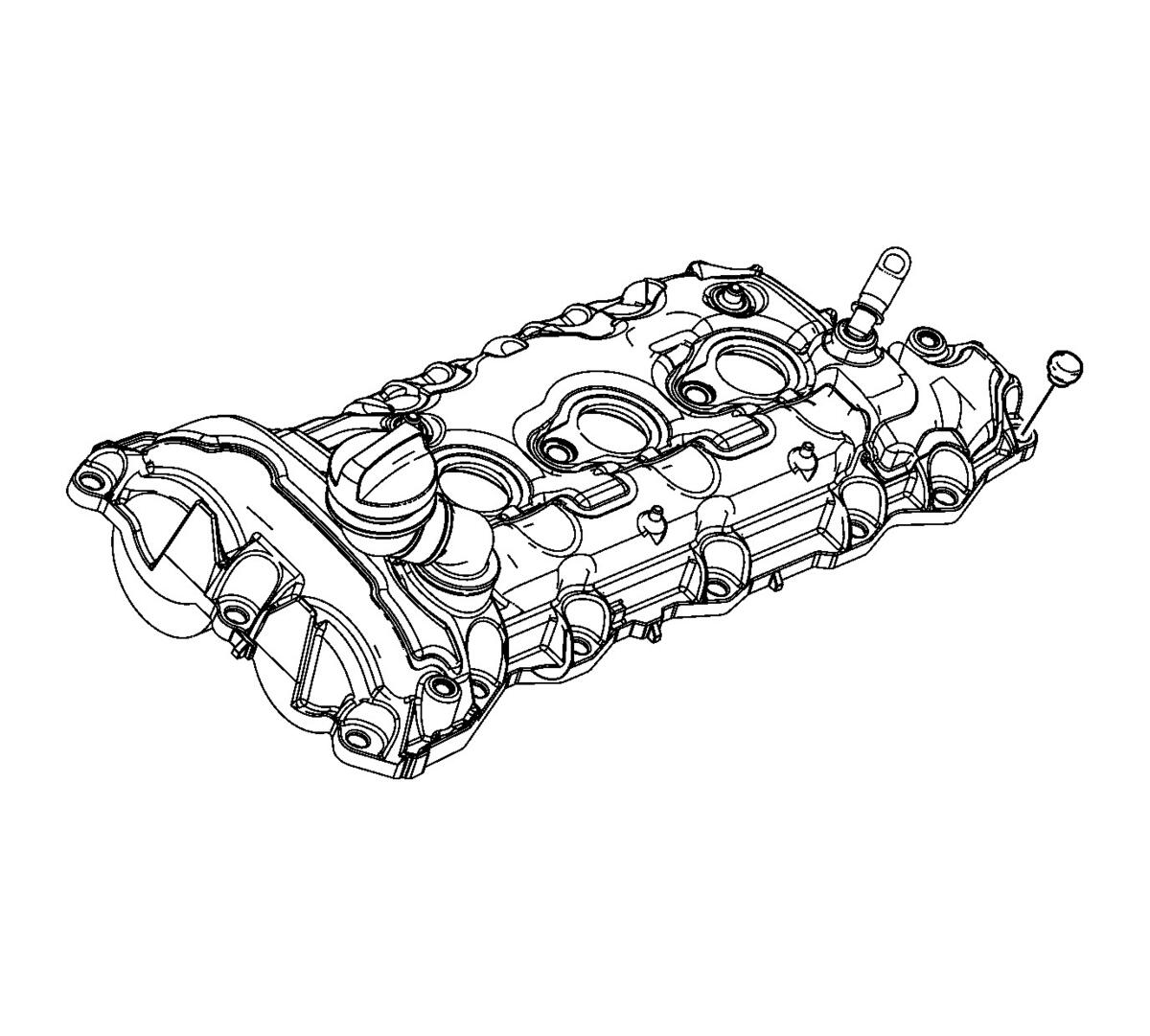

    7. Fig 2: Camshaft Cover
    GM1978179Courtesy of GENERAL MOTORS COMPANY
  7. Install the EN-46101  guide onto the spark plug tubes of the left cylinder head.
