Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Camshaft Cover Bolt Grommets
    GM1306486Courtesy of GENERAL MOTORS COMPANY
  1. Install new camshaft cover bolt grommets prior to installing the camshaft cover bolts.
    2. Fig 2: Engine Front Cover Split Lines
    GM1306487Courtesy of GENERAL MOTORS COMPANY
  2. Place a bead 8 mm (0.3150 in) in diameter by 4 mm (0.1575 in) in height of RTV sealant equivalent, on the engine front cover split lines (1).

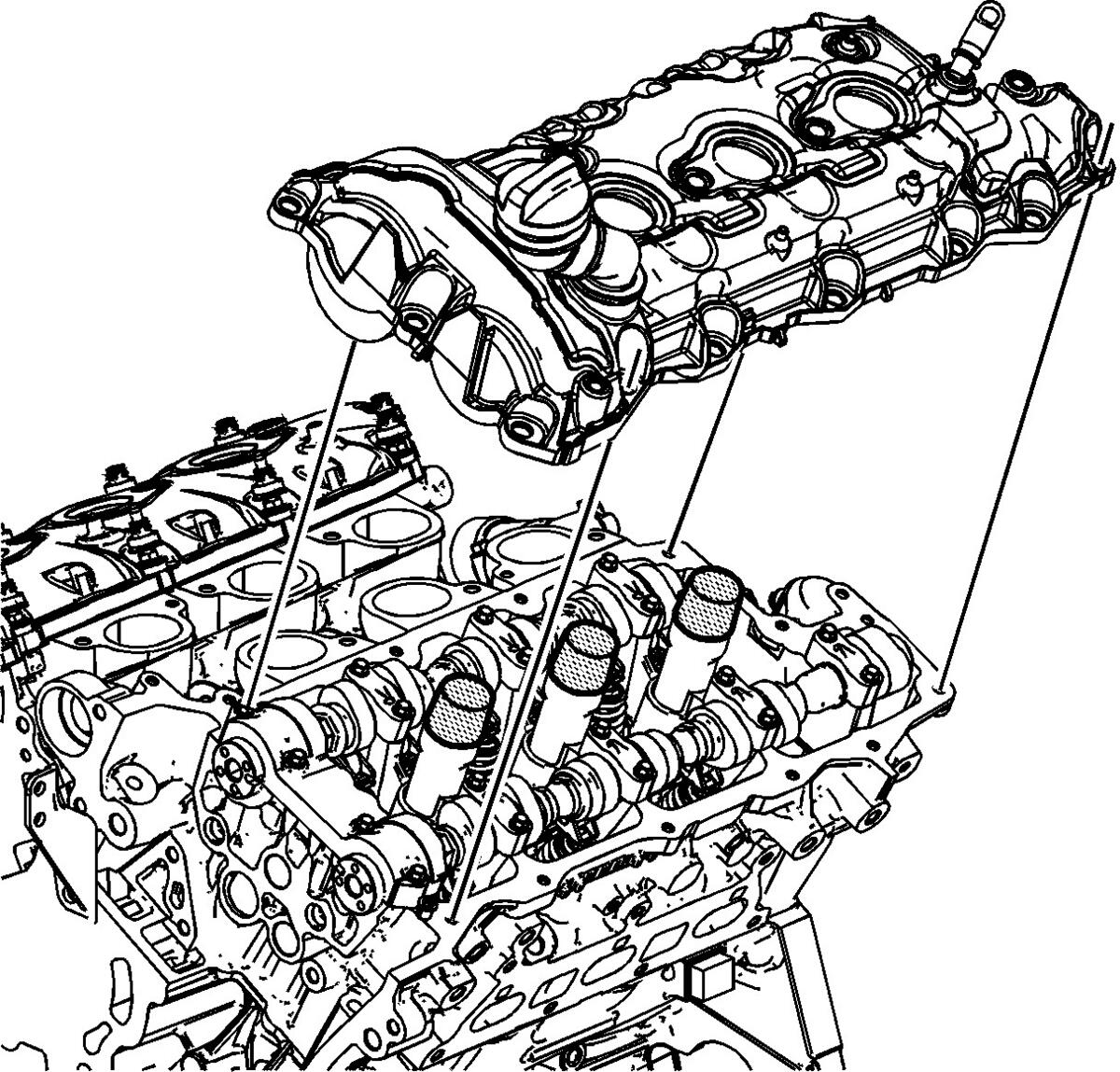

    3. Fig 3: Camshaft Cover And Cylinder Head
    GM1978180Courtesy of GENERAL MOTORS COMPANY
  3. Place the left camshaft cover into position onto the left cylinder head.

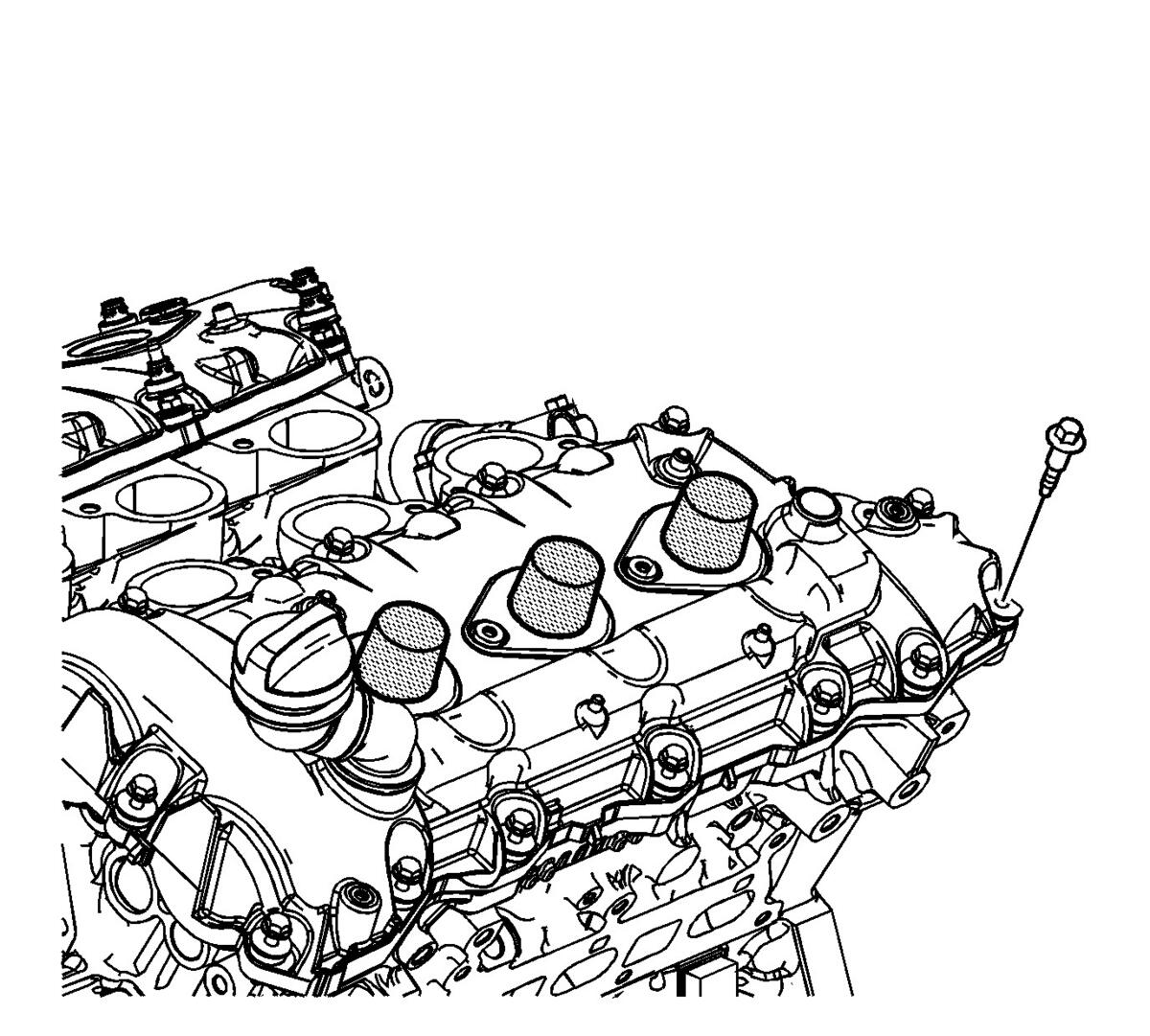

    4. Fig 4: Camshaft Cover And Bolts
    GM1978181Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Loosely install the left camshaft cover bolts.

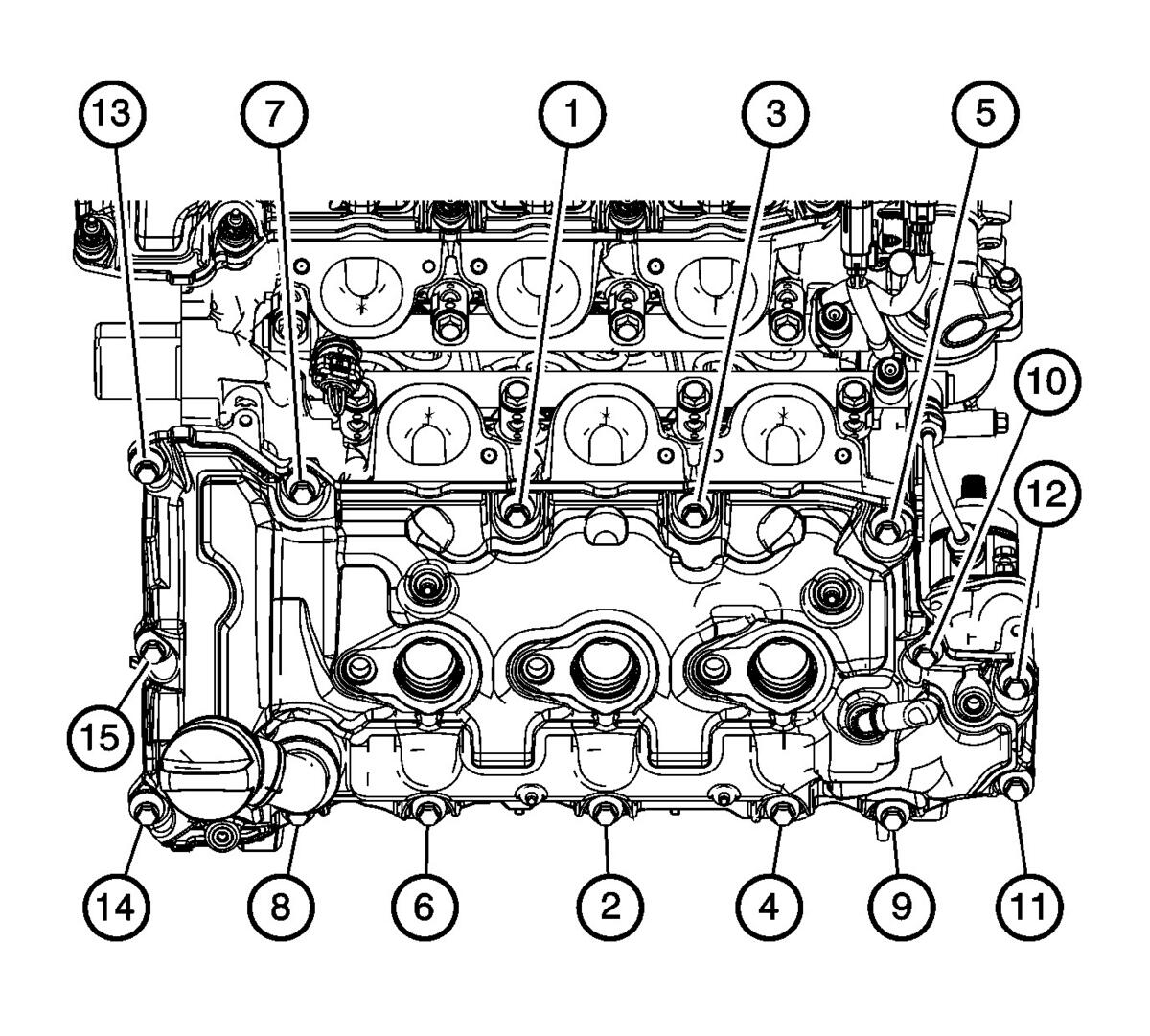

    5. Fig 5: Left Camshaft Cover Bolt Tightening Sequence
    GM1978182Courtesy of GENERAL MOTORS COMPANY
  5. Tighten the left camshaft cover bolts in the sequence shown to 10 N.m (89 lb in).
  6. Connect and install the engine harness to the camshaft cover.
  7. Install the intake manifold. Refer to Intake Manifold Replacement .

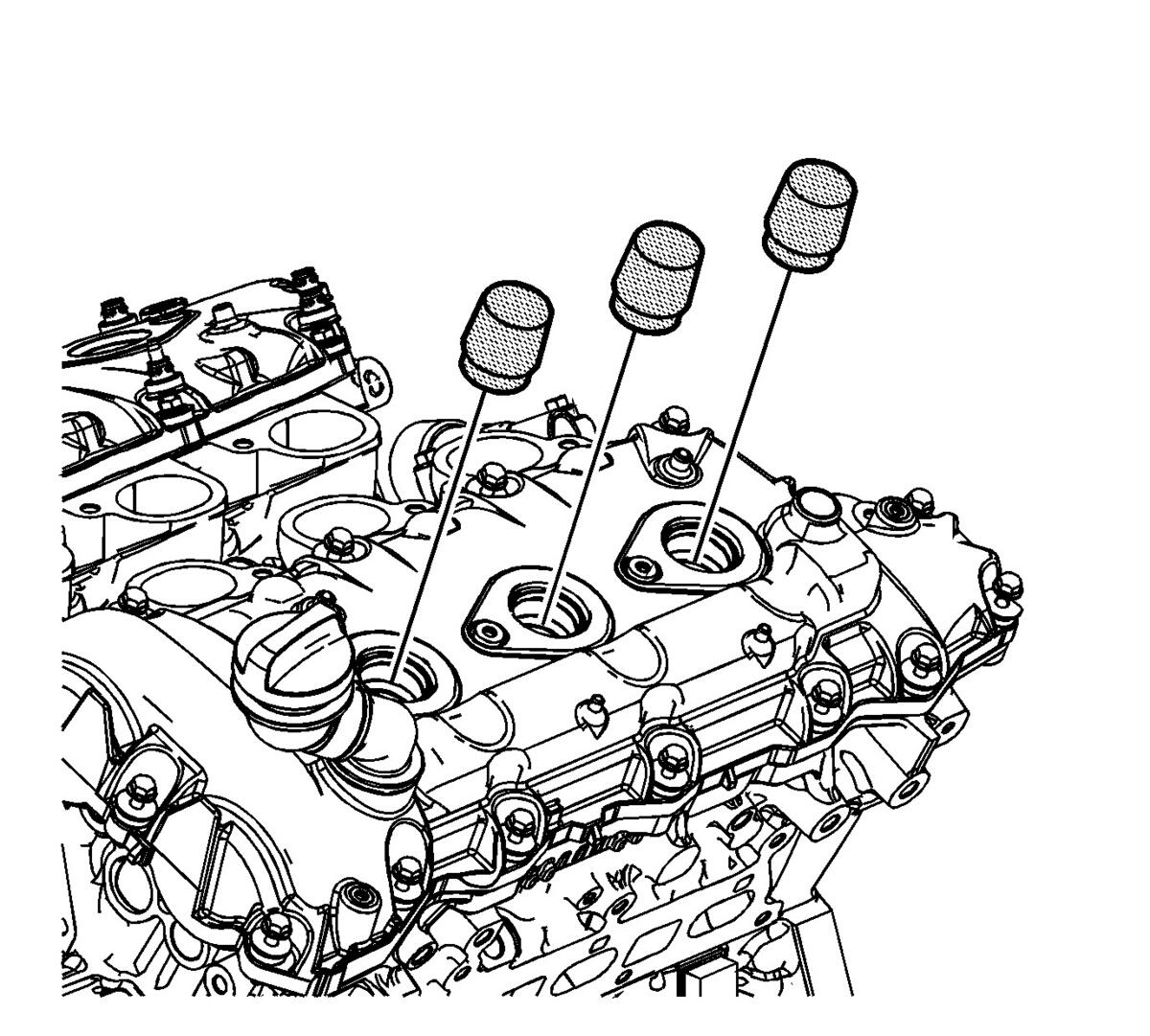

    8. Fig 6: Spark Plug Tubes And Cylinder Head
    GM1978183Courtesy of GENERAL MOTORS COMPANY
  8. Remove the EN-46101  guide from the spark plug tubes of the left cylinder head.
  9. Install the ignition coils. Refer to Ignition Coil Replacement - Bank 2 .
