Oil Pan Front

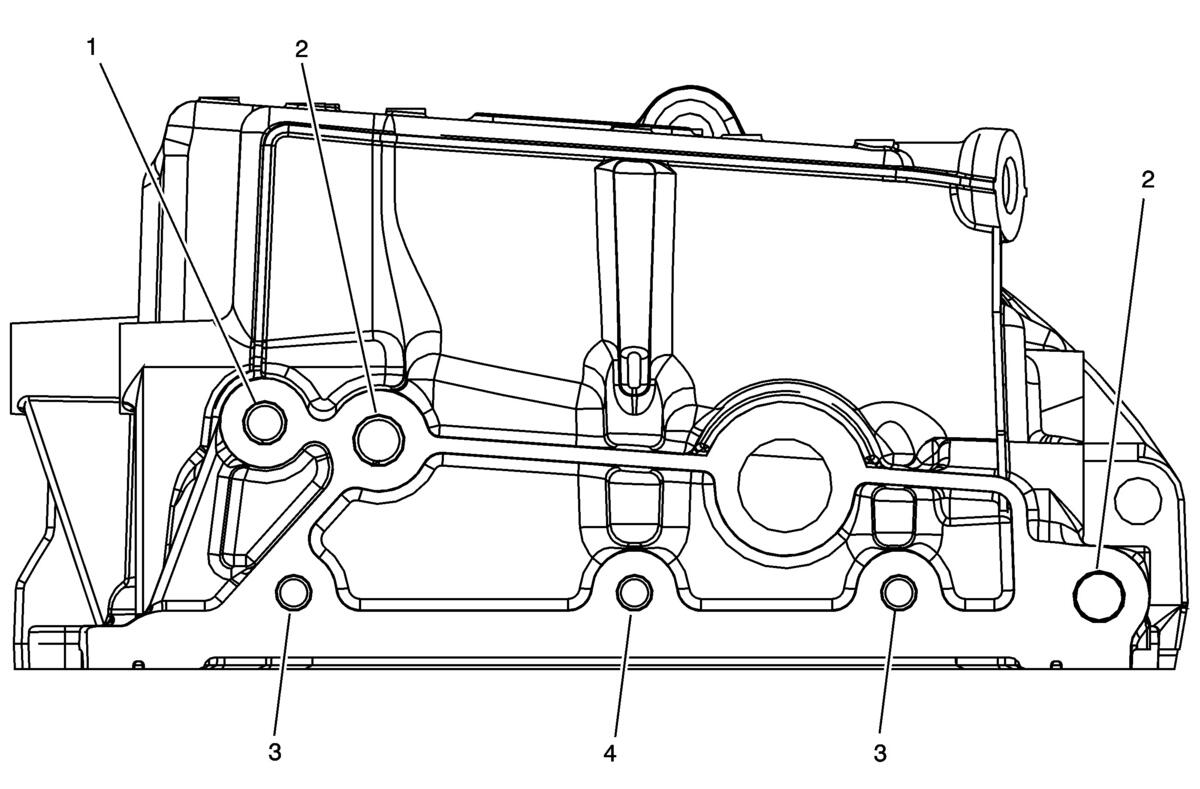

| Hole Location | Thread Size | Drill | Counter Bore Tool | Stop Collar | Tap | Driver | Insert | Drill Depth (Maximum) | Tap Depth (Minimum) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| J 42385- | MM | (IN) | MM | (IN) | |||||||
| 1 | M10 x 1.5 | 211 | 212 | N/A | 213 | 214 | 420 | 33.5 | 1.3189 | 27.0 | 1.0630 |
| 2 | M12 x 1.75 | 856 | 857 | N/A | 858 | 859 | 416 | 39.5 | 1.5551 | 32.0 | 1.2598 |
| 3 | M8 x 1.25 | 206 | 207 | N/A | 208 | 209 | 210 | 28.5 | 1.1220 | 23.0 | 0.9055 |
| 4 | M8 x 1.25 | 610 | N/A | N/A | 208 | 209 | 620 | 37.5 | 1.4764 | 32.0 | 1.2598 |
