Engine Block Right Deck Face
WARNING: This page is about a different variant/trim than selected.

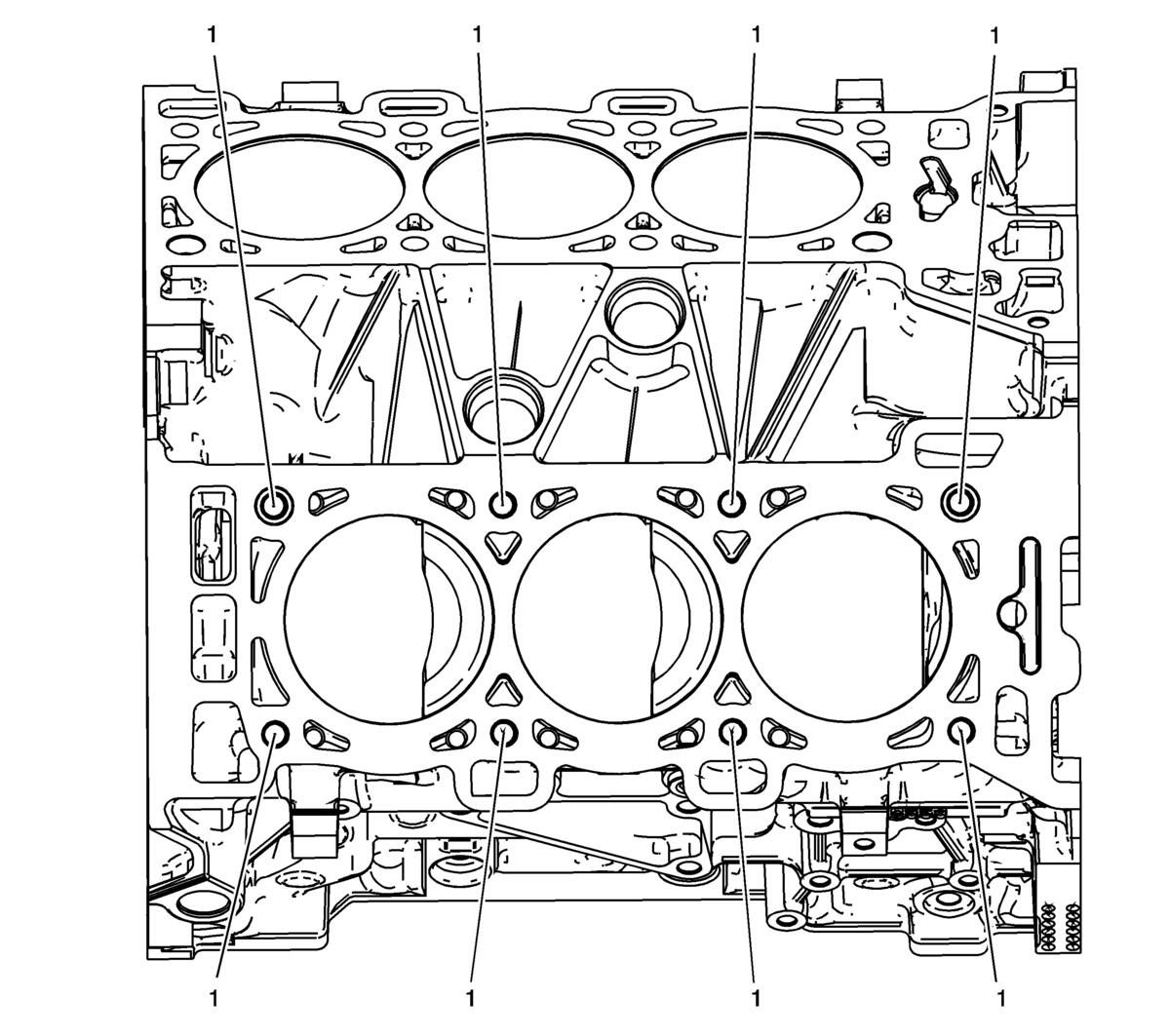

Courtesy of GENERAL MOTORS COMPANY Engine Block Right Deck Face
| Hole Location |
Thread Size |
Drill |
Counter Bore Tool |
Stop Collar |
Tap |
Driver |
Insert |
Drill Depth (Maximum) |
Tap Depth (Minimum) |
| |
|
J 42385- |
MM |
(IN) |
MM |
(IN) |
| 1 |
M11 x 2.0 |
723 |
N/A |
N/A |
724 |
725 |
108 |
102.5 |
4.0354 |
94.0 |
3.7008 |
