Water Pump Removal
WARNING: This page is about a different variant/trim than selected.

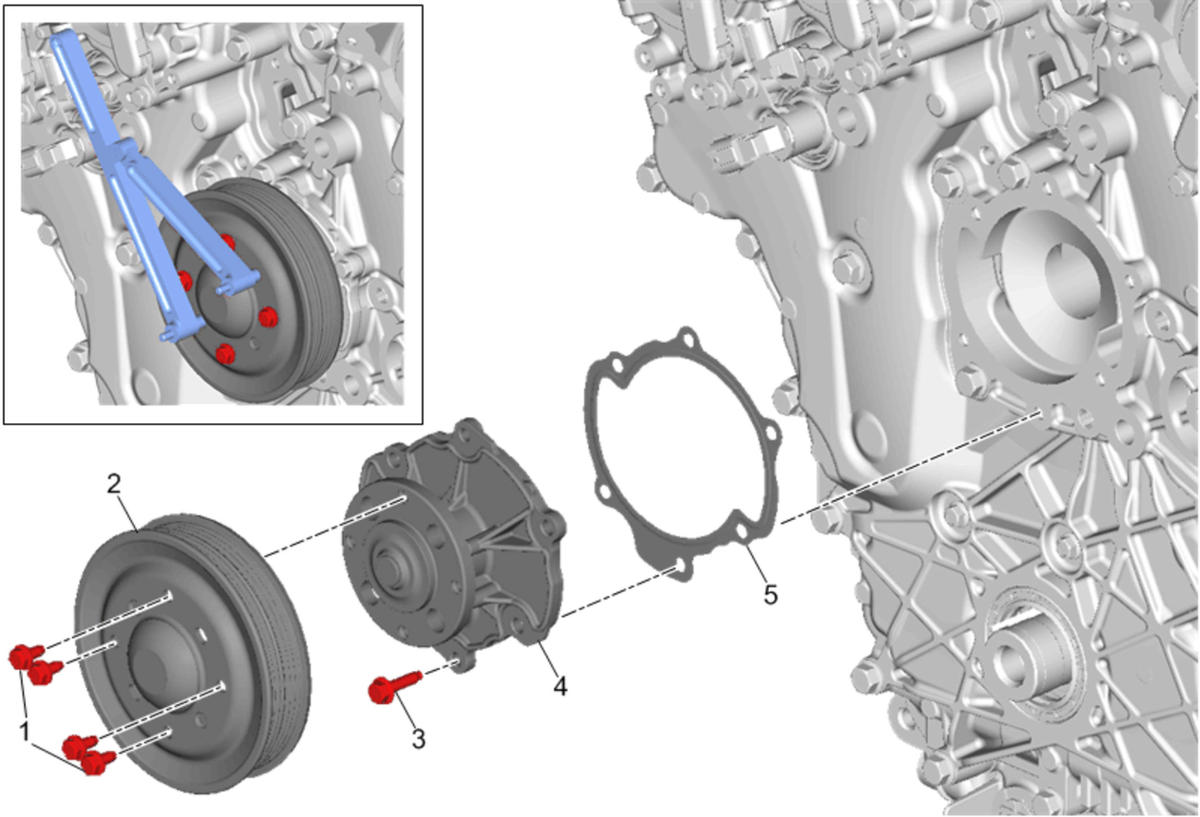

| Callout | Component Name |
|---|---|
| 1 | Water Pump Pulley Bolt (Qty: 4) Procedure
Special Tools EN-46104 Water Pump Pulley Holding Tool Equivalent regional tools: Special Tools |
| 2 | Water Pump Pulley |
| 3 | Water Pump Bolt (Qty: 6)
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
NOTE:
Remove and DISCARD the bolts. |
| 4 | Water Pump |
| 5 | Water Pump Gasket
NOTE:
Remove and DISCARD the gasket. |
