Water Pump Installation

WARNING: This page is about a different variant/trim than selected.

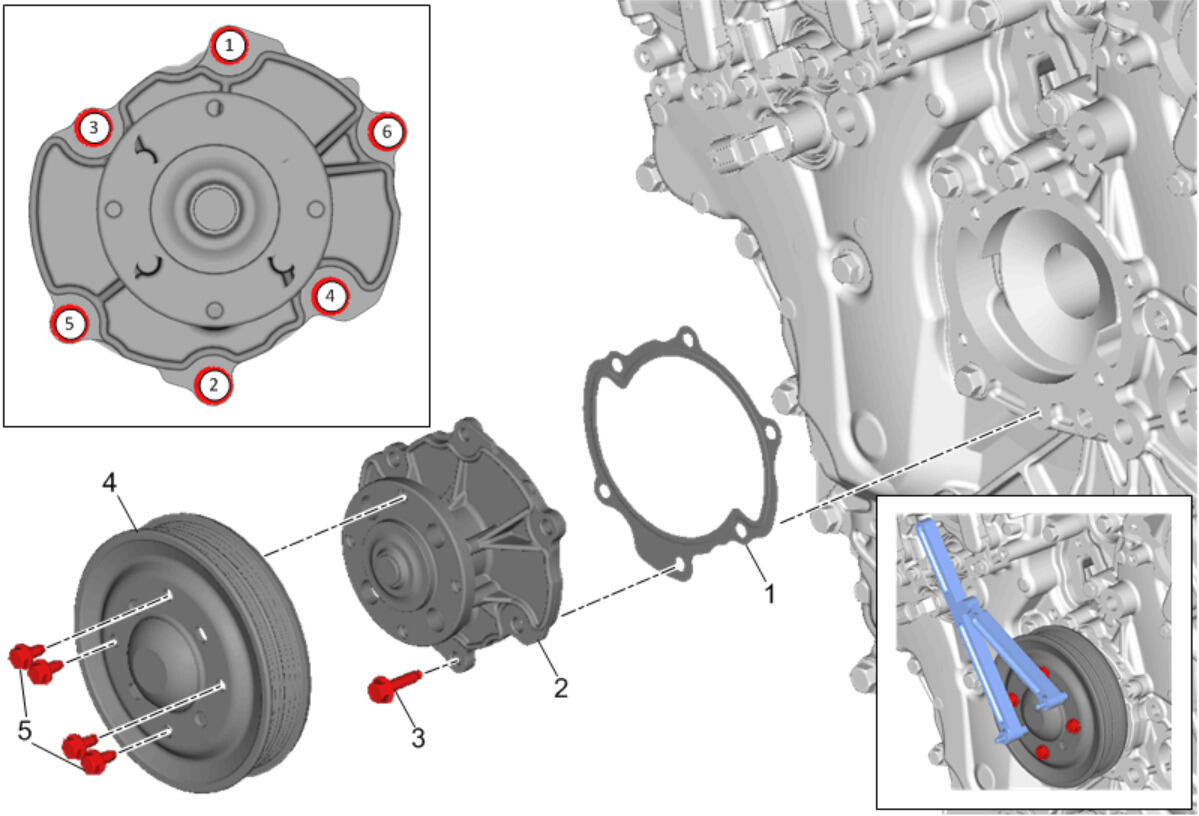

Fig 1: Water Pump

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Water Pump Gasket NOTE: Install a NEW gasket.
2	Water Pump
3	Water Pump Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . CAUTION: This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component. NOTE: Install NEW bolts. Tighten in sequence First Pass: 10 N.m (89 lb in) Second Pass: 10 N.m (89 lb in) Final Pass: 45 degrees
4	Water Pump Pulley Procedure Install EN-46104 Water Pump Pulley Holding Tool Onto Water Pump Pulley Mounting Holes Install Water Pump Pulley Bolts Remove EN-46104 Water Pump Pulley Holding Tool from the Water Pump Pulley Special Tools EN-46104 Water Pump Pulley Holding Tool Equivalent regional tools: Special Tools
5	Water Pump Pulley Bolt (Qty: 4) Tighten 10 N.m (89 lb in)
