Water Outlet Removal

WARNING: This page is about a different variant/trim than selected.

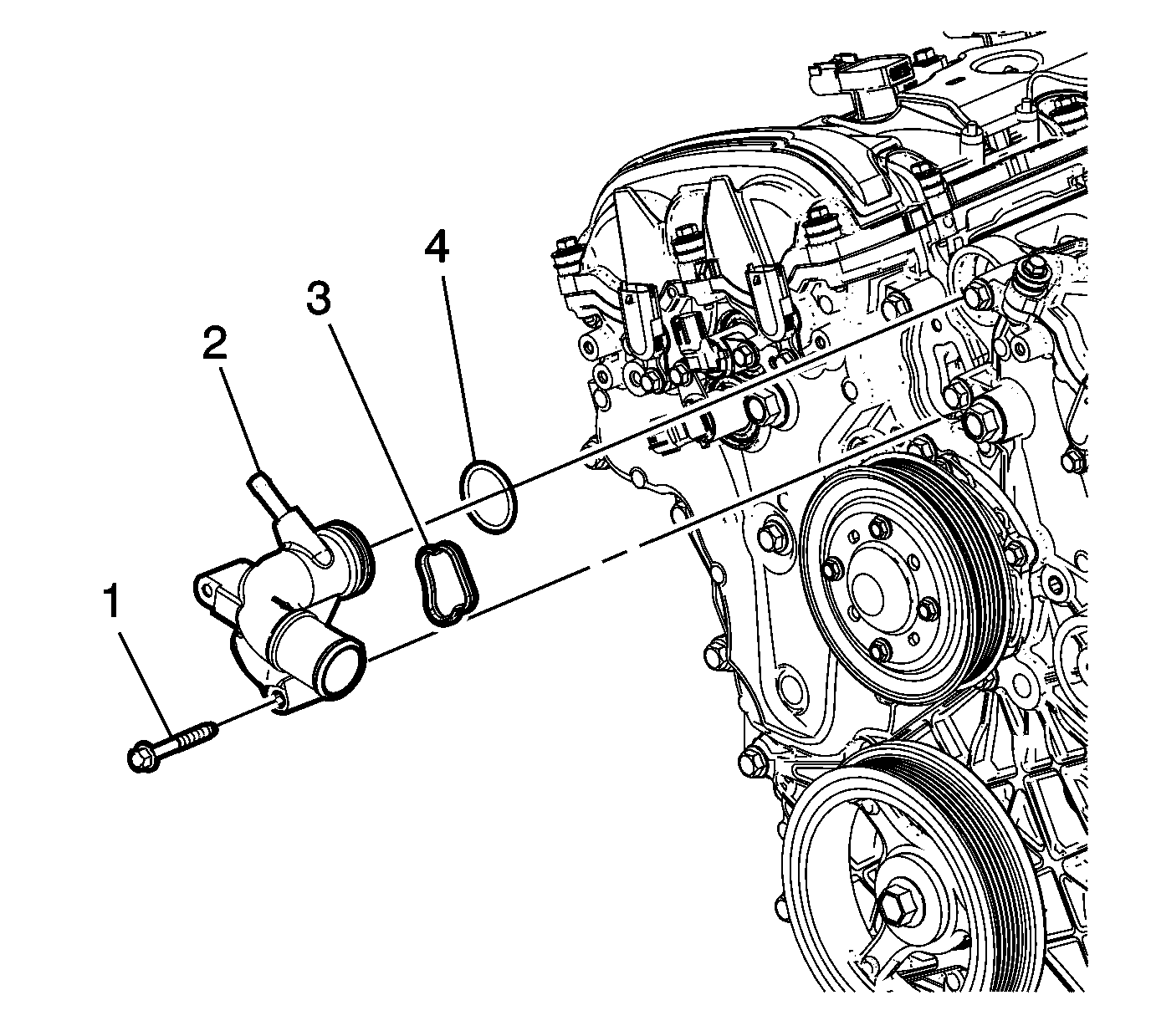

    Fig 1: Water Outlet, Seals And Bolts
    GM2636330Courtesy of GENERAL MOTORS COMPANY
  1. Remove the water outlet bolts (1).
  2. Remove the water outlet (2).
  3. Remove the water outlet seals (3, 4).
