Timing Chain Idler Sprocket Removal - Left Side

WARNING: This page is about a different variant/trim than selected.

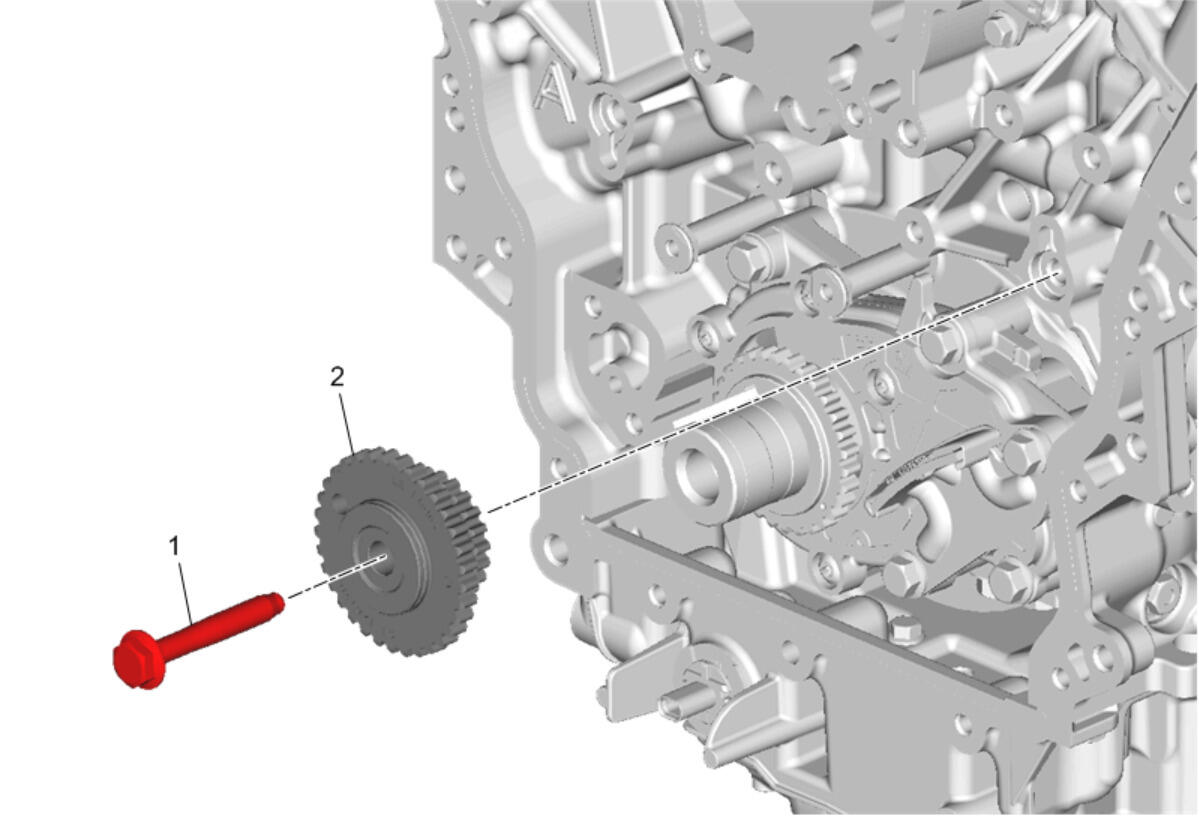

Fig 1: Timing Chain Idler Sprocket And Bolt - Left Side
GM4596864Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Timing Chain Idler Sprocket Shaft Bolt
2 Left Side Timing Chain Idler Sprocket
