Timing Chain Idler Sprocket Installation - Right Side

WARNING: This page is about a different variant/trim than selected.

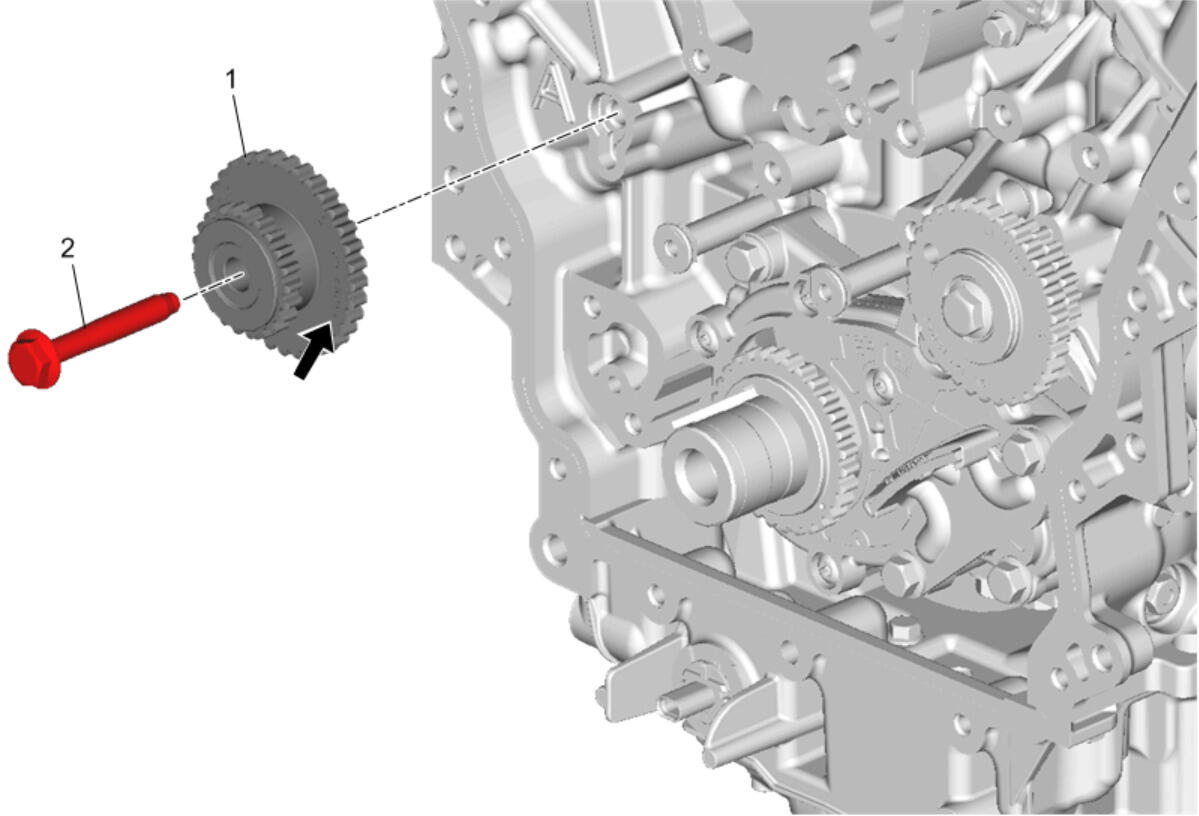

Fig 1: Timing Chain Idler Sprocket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Right Side Timing Chain Idler Sprocket Ensure that the right timing chain idler sprocket is being installed. The raised hub and the larger sprocket of the right timing chain idler sprocket is installed towards the block. Place the right timing chain idler sprocket to the cylinder block.
2	Timing Chain Idler Sprocket Shaft Bolt CAUTION: Refer to Fastener Caution . Tighten 58 N.m (43 lb ft)
